Full Linux SDK support

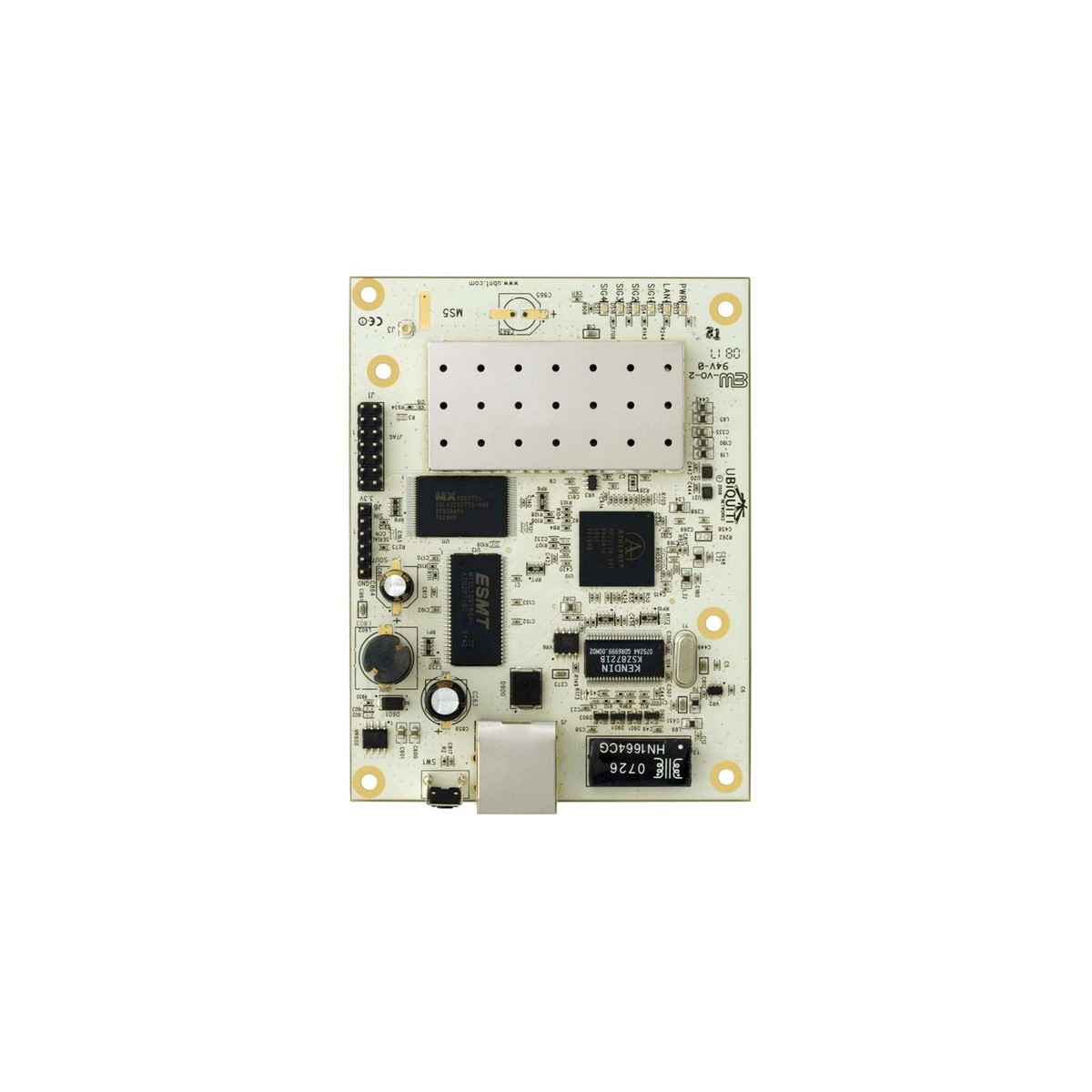

Introducing WispStation5, a Long-Range 5GHz Station designed specifically for the WISP OEM Market. WispStation5 features rock solid performance, the intuitive AirOS interface, and 15kEV ESD Protection at RF and Ethernet Ports.
Specifications
| Details | |
|---|---|
| Processor Specs | Atheros AR2315 SOC, MIPS 4KC, 180MHz |
| Memory Information | 16MB SDRAM, 4MB Parallel Flash |
| Serial Interface | 10Pin (5×2) Header available for RS232/DB9 |
| Networking Interface | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE ETSI EN301 489-17 / 893 |
| RoHS Compliance | YES |
| TX Channel Width Support | 5MHz / 10MHz / 20MHz / 40MHz |
| Max Power Consumption | 7.0 Watts |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| DC Voltage Rating | 5-24V (18V max recommended) |
| ESD/EMP Protection | Transient Voltage Suppression at POE port |
| Operating Temperature | -20C to 70C (System PCB optimized for low/hi-temp) |
| Modes | Station, StationWDS, AP Bridge |
| Services | SNMP,DHCP,NAT |
| Utilities | Antenna Alignment tool, Discovery Utility |
| Security | WEP/WPA |
| Outdoor Range (Antenna Dependent) | Over 50km |
