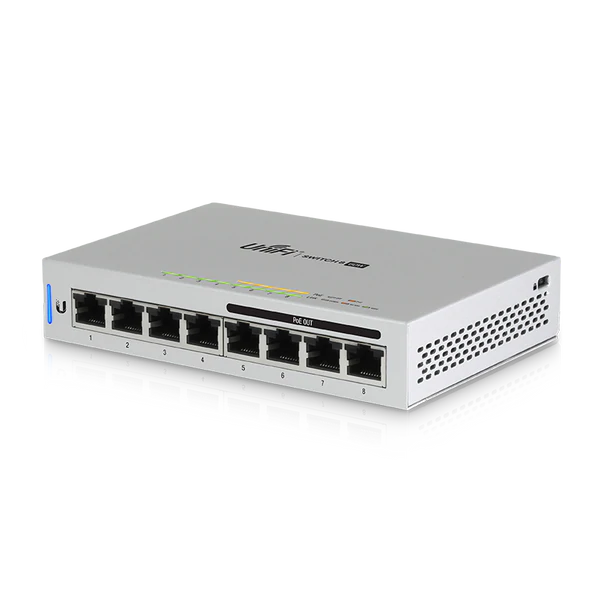

UBNT-US-8-60W
Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps.
The US-8-60W model has four auto-sensing PoE ports that can deliver up to 15.4W of power for PoE devices.
Features:
- (4) GbE RJ45 ports
- (4) GbE, 802.3af PoE RJ45 ports
- 48W total PoE supply
- Powered with the included 60W, AC/DC power adapter
- Compact housing
Technical Specification:
| UniFi Switch US-8-60W | |
|---|---|
| Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
| Weight | 432 g (15.24 oz) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| PoE Interfaces | (4) Ports 5, 6, 7, 8: IEEE 802.3af |
| Power Method | 48VDC, Max. 2A |
| Power Supply | External AC/DC Adapter: 48V, 1.25A |
| Max. Power Consumption | 12W (Excluding PoE Output) |
| Max. PoE Wattage per Port | 15.4W |
| PoE Output (Ports 5 to 8) | IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-) |
| Line Rate | 8 Gbps, Non-Blocking |
| LEDs System RJ45 Data Ports |
Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
