UBNT-US-8-150W

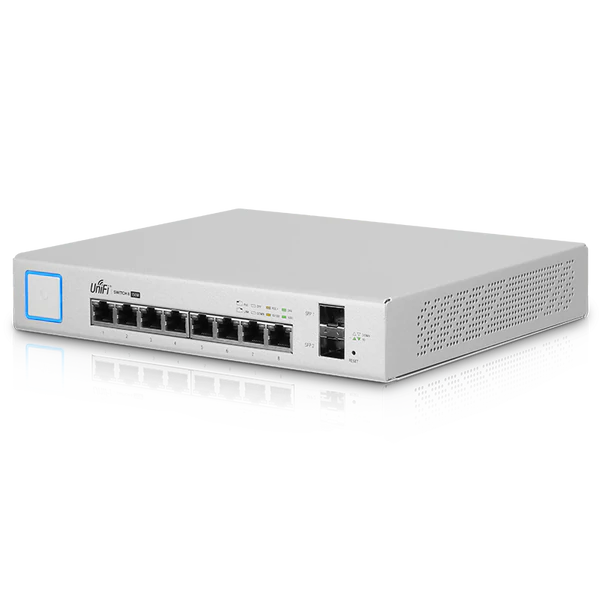

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the EdgeMAX line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. For its total, non-blocking throughput it supports up to 10 Gbps. By default UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.
Features:
- (8) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports
- (2) 1G SFP ports
- 130W total PoE supply
Technical specification:
| US-8-150W | |
|---|---|
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″) |
| Weight With Mount Brackets |
1.65 kg (3.64 lb) 1.73 kg (3.81 lb) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interfaces | Ethernet In-Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W DC |
| Max. Power Consumption Including PoE Output Excluding PoE Output |
150W 20W |
| Processor Specs | ARM Cortex-A9 400 MHz |
| Memory Information | 256MB DDR3 |
| Code Storage | 32 MB NOR Flash |
| Line Rate | 10 Gbps, Non-Blocking |
| LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE; Link/Speed/Activity Link/Speed/Activity |
| PoE Output (RJ45 Ports) | IEEE 802.3at/af 2-Pair (+1, 2; -3, 6); Passive 24V/0.7A 2-Pair (+4, 5; -7, 8) |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
