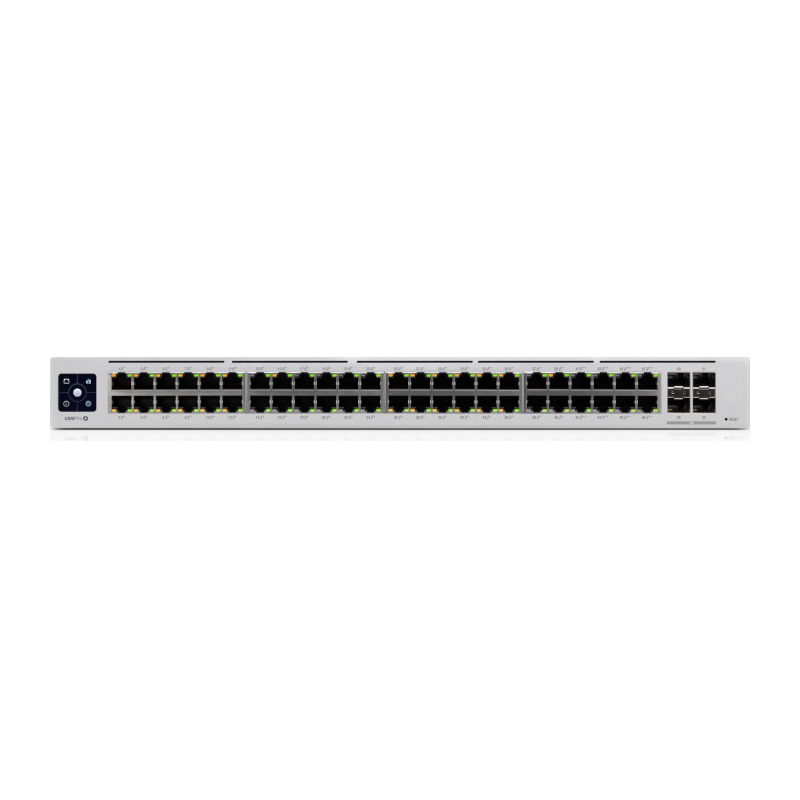

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Application and UniFi Network mobile app allow admins to configure and monitor virtually all the switch features in an intuitive graphical user interface from anywhere.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7″) |
| Weight | Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) GbE RJ45 ports (4) 1/10G SFP+ ports |
| Total non-blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
