Versatile networking and management functionality

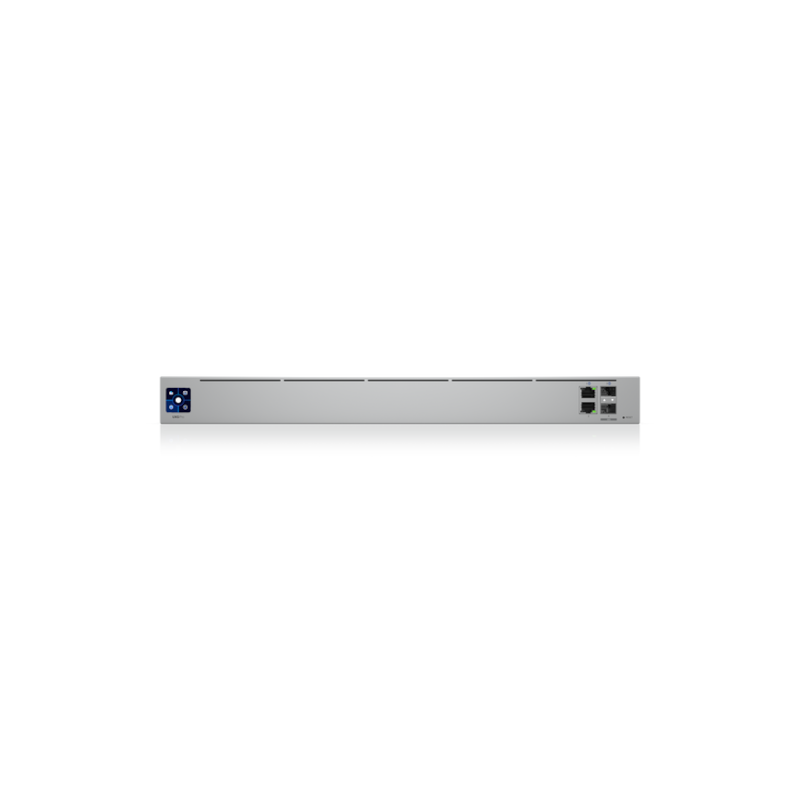

Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features. The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications.
It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
The device is equipped with SmartPower outlet (200~240VAC/1.25A) for an external modem. It also supports power redundancy when connected to the UniFi SmartPower RPS (sold separately).
UniFi Network Application support
You can centrally manage multiple networks from an intuitive interface. Enjoy full range of features including real-time device insights, deep configuration options, network users and guests managing, remote firmware upgrade. Personalize the design, architecture, and privacy of guest hotspots. Set up devices quickly and manage them on the go with a powerful mobile app.
Technical Specifications :
| Mechanical | |||||
|---|---|---|---|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24″) | ||||
| Weight | 3.42 kg (7.54 lb) | ||||
| Enclosure materials | Front panel: aluminum CNC Top cover/base: SGCC steel |
||||
| Hardware | |||||
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz | ||||
| Memory information | 2 GB DDR4 | ||||
| Management interface | Ethernet | ||||
| Networking interface | LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ portWAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port |
||||
| LCM display | (1) 1.3″ touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
||||
| Button | Factory reset | ||||
| Power method |
|
||||
| Power supply | AC/DC, internal, 50W | ||||
| Max. power consumption | 30W | ||||
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV | ||||
| Operating temperature | -10 to 40° C (14 to 104° F) | ||||
| Operating humidity | 5 – 95% noncondensing | ||||
| Certifications | CE, FCC, IC | ||||
| LEDs | |||||
| AC outlet/ RPS | Blue | ||||
| Ethernet | Green/amber | ||||
| SFP+ | White/green |
