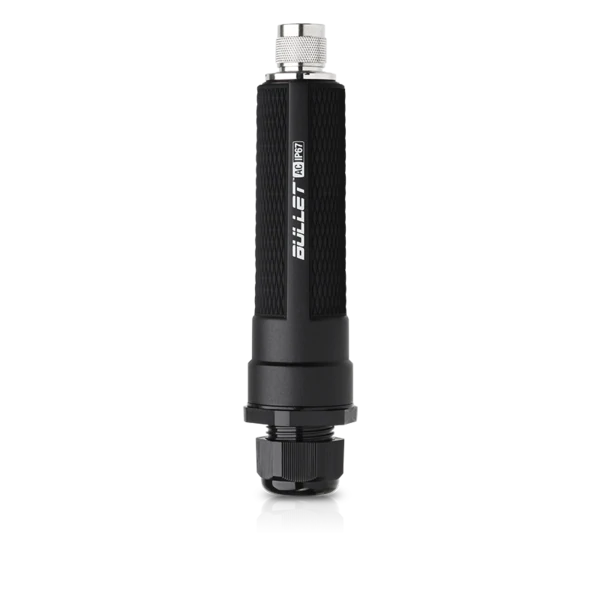

BulletAC-IP67
Ubiquiti designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet ™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Bullet™ AC IP67 covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links. It also features IP 67 protection for deploy-anywhere reliability.
Features:
- airMAX ac Technology for 300+ Mbps Throughput at 5 GHz
- Superior Processing by airMAX Engine with Custom IC
- Plug and Play Integration with airMAX Antennas
Technical Specifications:
| BulletAC-IP67 | |
|---|---|
| Dimensions | 190 x 46 mm (7.72 x 1.81″) |
| Weight | 213 g (7.51 oz) |
| Enclosure | Aluminum and Rubber |
| Processor | MIPS 74KC |
| Memory | DDR2 64MB |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Connector | N-Type Connector |
| Max. Power Consumption | 7W |
| Output Power | 21 dBm |
| Power Supply | 24VDC, 0.3A (Minimum)* |
| Throughput 2.4 GHz 5 GHz |
160+ Mbps 300+ Mbps |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Shock and Vibration | ETSI300-019-1.4 |
| ESD/EMP Protection | ±24kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Weatherproofing | IP67 |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
2400 – 2483.5 5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
| Worldwide | 2400 – 2483.5 5150 – 5875 |
* Not included with the BulletAC-IP67
