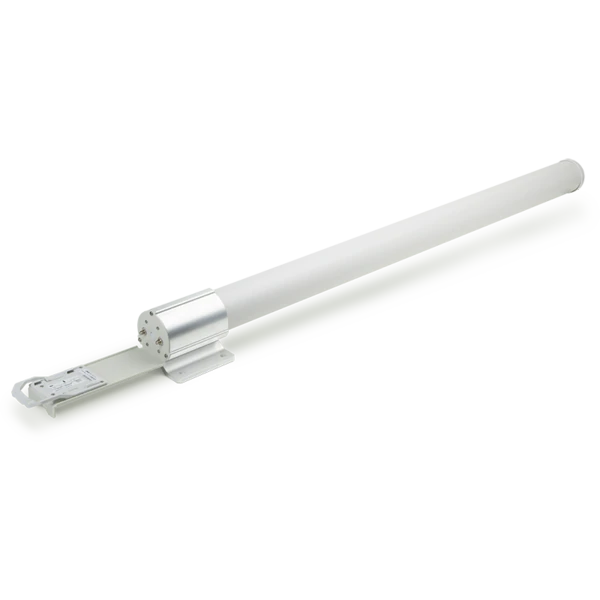

The airMAX® Omni Antenna is a carrier-class 2×2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
The airMAX Omni Antenna provides powerful 360° coverage, 2×2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Next-Generation 2×2 Dual Polarity MIMO Omni Antenna
AirMax Omni is a Carrier Class omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios.
Utilize AirMax Technology
AirMax Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Seamless Rocket Integration
AirMax Omni has an integrated mount that lets you securely snap Rocket M (sold separately) into place.
Powerful AirOS Software
AirOS is an intuitive, versatile, and highly developed Ubiquiti firmware technology that is included on Rocket M units.
2×2 MIMO
All versions of AirMax Omni feature 2×2 MIMO to help it achieve Carrier Class speed and performance.
Technical Specifications:
| AMO-2G13 | |
|---|---|
| Dimensions (mm) | 1390 X 122 X 105 |
| Weight | 2.4 kg |
| Frequency Range | 2.35 – 2.55 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.7:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 111.2 N @ 200 km/h(25 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 E |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
