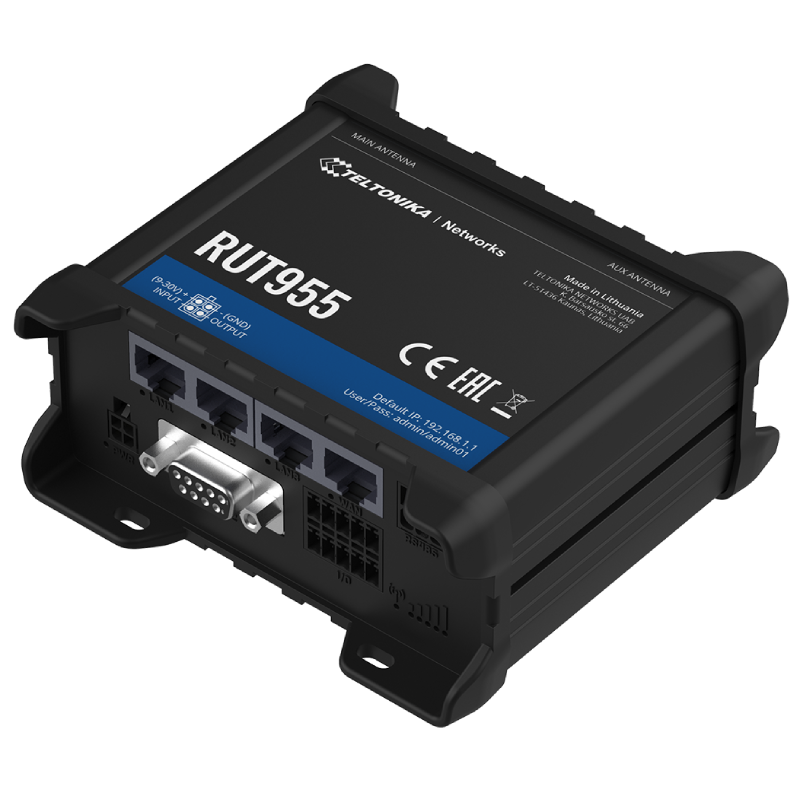

RUT955
Professional rugged Dual SIM 4G LTE & WiFi cellular router. Highly secure and reliable industrial device equipped with Ethernet, Digital & Analogue I/O, RS232, RS485, GNSS (GPS), microSD and USB interfaces.
RUT955 is a highly reliable and secure LTE router with I/O, GNSS and RS232/RS485 for professional applications. Router delivers high performance, mission-critical cellular communication and GPS location capabilities. RUT955 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
VIDEO
Technical Specifications:
MOBILE
Mobile module
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list
Operator black/white list
Multiple PDN (optional)
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
WIRELESS
Wireless mode
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi
WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security
WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID
SSID stealth mode and access control based on MAC address
WiFi users
up to 100 simultaneous connections
Hotspot
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN
1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN
3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules
DHCP
Static and dynamic IP allocation, DHCP Relayd
QoS
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
Network backup
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing
Balance your internet traffic over multiple WAN connections
NetSnapper (optional)
Mobile connection management, data compression VPN client (not available in standard FW)
SSHFS (optional)
Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authentication
Pre-shared key, digital certificates, X.509 certificates
Firewall
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security
WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN
Port based and tag based VLAN separation
Mobile quota control
Set up custom data limits for both SIM cards
WEB filter
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN
Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec
IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE
GRE tunnel
PPTP, L2TP
Client/Server services can run simultaneously
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs’ code
SSTP
SSTP client instance support
MODBUS
Modbus TCP slave
ID range
1-255
Modbus TCP master
Supported functions
01, 02, 03, 04, 05, 06, 15, 16
Supported data formats
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
Modbus RTU master (RS232)
Supported baud rates
From 300 to 115200
Supported functions
01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
Number of data bits
From 5 to 8
Number of stop bits
1 or 2
Parity
None, Even, Odd
Flow
None, RTS/CTS, Xon/Xoff
Duplex
Full duplex
Modbus RTU master (RS485)
Supported baud rates
From 300 to 115200
Supported functions
01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
Number of data bits
8
Number of stop bits
1
Parity
None, Even, Odd
Flow
None, Xon/Xoff
Duplex
Half duplex
MONITORING & MANAGEMENT
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT
MQTT Broker, MQTT publisher
SNMP
SNMP (v1, v2, v3), SNMP trap
JSON-RPC
Management API over HTTP/HTTPS
MODBUS
MODBUS TCP status/control
RMS
Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU
Atheros Wasp, MIPS 74Kc, 550 MHz
RAM
128 MB, DDR2
FLASH memory
16 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA
Update FW/configuration from server
RMS
Update FW/configuration for multiple devices
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
GPL package with built environment provided
LOCATION TRACKING
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software
supported server software TAVL, RMS
Mobile Network Geolocation
Location without using GPS, get approximate location based on mobile tower on RMS
Geofencing
Configurable multiple geofence zones
SERIAL
RS232
DB9 connector, full RS232 (with RTS, CTS)
RS485
RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial functions
Console, Serial over IP, Modem, Modbus gateway, NTRIP Client
INPUT/OUTPUT
Input
3 x Input (0 – 3 V digital input / 0 – 30 V digital galvanically isolated input / 0 – 24 V analog input)
Output
2 x Output (30 V, 250 mA digital open collector output / 40 V, 4 A SPST relay output)
Events
SMS, EMAIL, RMS
USB
Data rate
USB 2.0
Applications
Samba share, custom scripts
External devices
Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats
FAT, FAT32, NTFS
SD CARD
Physical size
Micro SD
Applications
Samba share, custom scripts
Capacity
Up to 32 GB
POWER
Connector
4 pin industrial DC power socket
Input voltage range
9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption
< 2 W idle, < 7 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet
4 x RJ45 ports, 10/100 Mbps
I/O’s
10 pin industrial socket for inputs/outputs, 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs
1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders
Power
4 pin DC connector
Input/output
10 pin industrial socket for inputs/outputs
Antennas
2 x SMA for LTE, 1 x SMA for GNNS, 2 x RP-SMA for WiFi antenna connectors
USB
USB A port for external devices
SD card
Micro SD card slot
RS232
DB9 socket for full-featured RS232
RS485
6 pin industrial socket for 2/4 wire RS485
Reset
Reset/restore to default button
PHYSICAL SPECIFICATION
Casing material
Aluminium housing, plastic panels
Dimensions
80 mm x 106 mm x 46 mm (H x W x D)
Weight
280 g
Mounting options
DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
MTBF
230000 h
REGULATORY & TYPE APPROVALS
Regulatory
CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance
Operator
AT&T, Verizon
Vehicle
ECE R10 (E-mark)
EMI IMMUNITY
Standards
Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
ESD
EN61000-4-2:2009
RS
EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
Surge immunity (AC Power Line)
EN 61000-4-5:2006
Surge immunity (Ethernet ports)
EN 61000-4-5:2014, clause 7.1 of ITU-T K21
Transient and surges
ISO 7632-2:2004
CS
EN 61000-4-6:2009
DIP
EN 61000-4-11:2004
RF
Standards
EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0
SAFETY
Standards
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
ENVIRONMENTAL
Ingress Protect
LST EN 60529:1999+A1+AC:2002
Vibration
Class guideline-DNVGL-CG-0339:2016
STANDARD PACKAGE CONTAINS
Router RUT955
Euro PSU
2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
GNSS antenna (adhesive , SMA male, 3 m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
Packaging box
