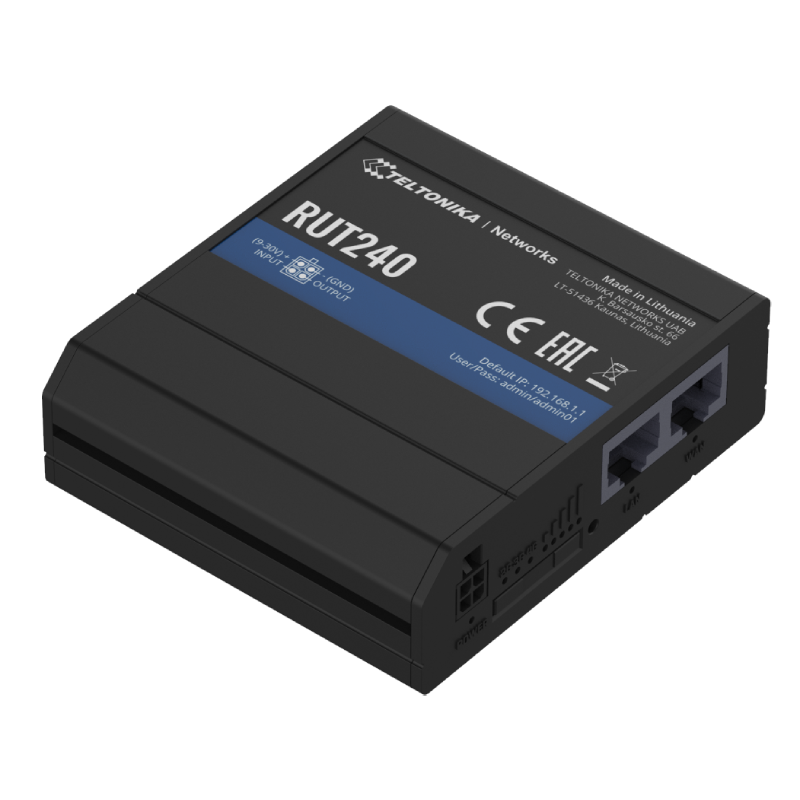

Teltonika RUT240 LTE Router (RUT240 07E000) – Standard Package)

Περιγραφή

RUT240

RUT240 is a compact, cost-effective and powerful industrial LTE router for professional applications. Router delivers high performance for mission-critical cellular communication. Equipped with external SIM holder and signal strength status LEDs, it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

LTE support
Enjoy the LTE internet connection all around whether it is a camping spot, your home or office, with no worries – RUT240 has you covered. This sleek router supports high speed LTE CAT4, which provides speeds of up to 70 Mbps for your leisure or business demands.

Wireless network
With built-in WiFi connectivity you can free yourself from cumbersome Ethernet-based on-site maintenance or simply save some smartphone SIM data for online check-ups and work e-mail attachment downloads.

Input and Output

With configurable inputs you can monitor external events, be it water level threshold crossing or a simple door sensor. Receive alerts remotely either via SMS or e-mail.

External SIM slot
External SIM slot let’s you insert or change SIM card with relative ease, and the device will connect to the network right away without any need of reboot.

2x Ethernet ports
Small and compact device for tight and compact spaces with limited amount of external devices. If one of the ports remains free, it can be used as either main internet connection or a backup connection.

Technical Specifications:

TECHNOLOGY

• 4G (LTE) – CAT 4 up to 70 Mbps
• 3G – Up to 42 Mbps
• 2G – Up to 236.8 kbps
• WiFi – Up to 150 Mbps
• GPRS
• Ethernet – 2 ports
• SMS

HARDWARE

• Digital output – 1
• DIN – digital input – 1
• 1x SIM Card
• 1x LAN 10/100Mbps Ethernet port
• 1x WAN 10/100Mbps Ethernet ports
• IEEE 802.11b/g/n WiFi standards
• Durable aluminum housing
• Mobile antenna type – 2x SMA for LTE
• WiFi antenna type – 1 x RP-SMA
• Input voltage range – 9-30 VDC
• Operating temperature range – -40°C to 75° C
• Storage temperature range – -45ºC to 80º C
• Power consumption – < 5W
• Mounting options – DIN RailWall
• LED indication – 3x connection status, 5x connection strength, 1x Power

FIRMWARE

• Bridge mode
• Static routes
• NTP
• Wireless Hotspot
• Wireless Client
• Wireless AP
• Ping reboot
• Periodic reboot
• Real-time graphs
• Backup WAN
• Mobile Traffic counter
• Connection status overview bar
• Configuration backup/restore
• VRRP
• IPsec
• GRE Tunnel
• OpenVPN
• PPTP
• SNMP
• SNMP Trap
• Send/receive SMS
• Status via SMS
• SMS reboot
• Mobile enable/disable via SMS
• Wireless enable/disable via SMS
• OpenVPN enable/disable via SMS
• Web Filter
• Mobile on Demand
• Mobile Data Limit
• Configuration Profiles
• Event logging
• QoS
• Call Utilities iDevice can take action if it recieves a call. Actions: reboot, get status, turn Wi-Fi on/off, turn mobile data on/off, turn output on/off.

• FOTA (Firmware Over The Air)
• Disable Roaming
• SMS gateway
• Access control safety
• VLAN
• CLI
• Firewall
• IP/MAC filter
• DHCP server
• Dynamic DNS
• RMS support

Technical details

LTE:

• LTE FDD: B1/B3/B5/B7/B8/B20
• LTE TDD: B38/B40/B41
• LTE CAT4 up to 70 Mbps DL
• Class 3 (23dBm±2dB) for LTE FDD
• Class 3 (23dBm±2dB) for LTE TDD

UMTS/DC-HSPA+:

• 850/900/2100 MHz
• DC-HSPA+ mode: Max 42Mbps (DL) Max 5.76Mbps (UL)
• UMTS mode: 384 kbps DL, 384 kbps UL
• TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL)
• Power Class 3 (24dBm +1/-3dB) for UMTS bands
• Class 3 (24dBm+1/-3dB) for TD-SCDMA

GSM/GPRS/EDGE:

• 900/1800 Mhz
• GPRS/EDGE Multi-slot Class 12
• Power Class E2 (27dBm ±3dB) for EDGE 850/900
• Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900
• Power Class 4 (33dBm ±2dB) for GSM 850/900
• Power Class 1 (30dBm ±2dB) for GSM 1800/1900

ETHERNET:

• IEEE 802.3, IEEE 802.3u standards
• 1 x LAN 10/100Mbps Ethernet port
• 1 x WAN 10/100Mbps Ethernet port
• Supports auto MDI/MDIX

WIFI:

• IEEE 802.11b/g/n WiFi standards
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401-2.495GHz WiFi frequency range
• 20dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

Standard package contains:

• Router RUT240
• Euro PSU
• 2 x LTE antennas (swivel, SMA male)
• 1 x WiFi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• Packaging box
