Περιγραφή
Features
- t

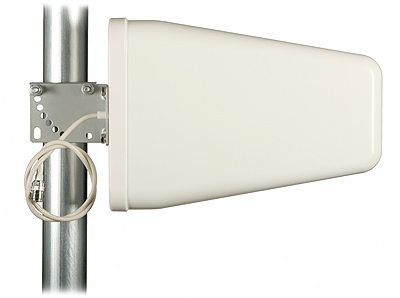

- Outdoor use, directional characteristic (log periodic array);
- Broadband device: 698-800 MHz, 800-960 MHz, 1700-2700 MHz;
- Multi-use: GSM, DCS, UMTS, WLAN, LTE applications;
- Gain:
- t
- 7.5 dBi (698-800 MHz),
- 8.0 dBi ( 800-960 MHz),
- 10 dBi (1700-2700 MHz);
t
t
- Shorted for DC,
- VSWR <1.5;
- 55 cm lead with N connector;
- Housing made of ABS plastic, UV resistant and weatherproof;
- Mounting with U-bolt;
- Tilt range: 0-90o;
- Mounting possible to vertical, horizontal, or angled (45o) tube.
t
t
t
t
t
t
t
t
t
t
Specifications
| Band [MHz] | 698-800 | 800-960 | 1700-2700 |
| Gain [dBi] | 7.5 | 8.5 | 10 |
| Vertical beamwidth [°] | 65 | 60 | 50 |
| Horizontal beamwidth [°] | 85 | 85 | 60 |
| Front/back ratio [dB] | >15 | >20 | >20 |
| VSWR | <1.5 | ||
| Impedance [Ω] | 50 | ||
| Polarization | Vertical | ||
| Max input power [W] | 100 | ||
| Connector | N-f | ||
| Cable length [cm] | 55 | ||
| Dimensions [mm] | 293x210x65 | ||
| Weight [kg] | 0.92 | ||
