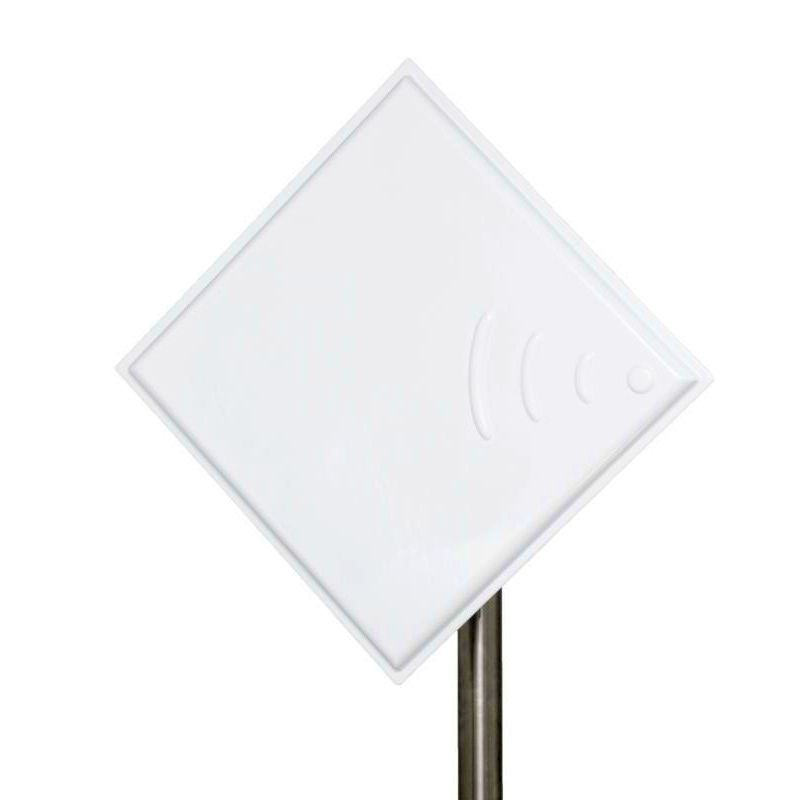

This antenna is designed to be used in places where UMTS signal level is to low and doesn’t allow correct voice and data transmission through the modem. UMTS PANEL MAX antenna allows to get better radio signal used in UMTS(G3) transmission 1900-2100 MHz. Using the antenna connected to the modem allows higher tramission speed due to better signal level and modulation. The antenna was made from the very best materials and is fully weatherproof (humidity, wind, UV).
Notice! To cooperate with GSM networks, the antenna should be set in vertical polarization!
| Technical Specification | |
|---|---|
| Model | AN-RFM-PL-15/21G |
| Gain | 15 dBi |
| Frequency | 1900 – 2100 MHz |
| Vertical beam width | 34 degrees |
| Horizontal beam width | 32 degrees |
| Impedance | 50 Ohm |
| Connector | N(f) |
| VSWR | 1.5 |
| Dimensions | 304,8 / 304,8 / 38,1 mm |
| Weight | 1.19 kg |
| Polarization | vertical or horizontal |
| Standards | Full compatibility with UMTS |
| Mounting | Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction). |
