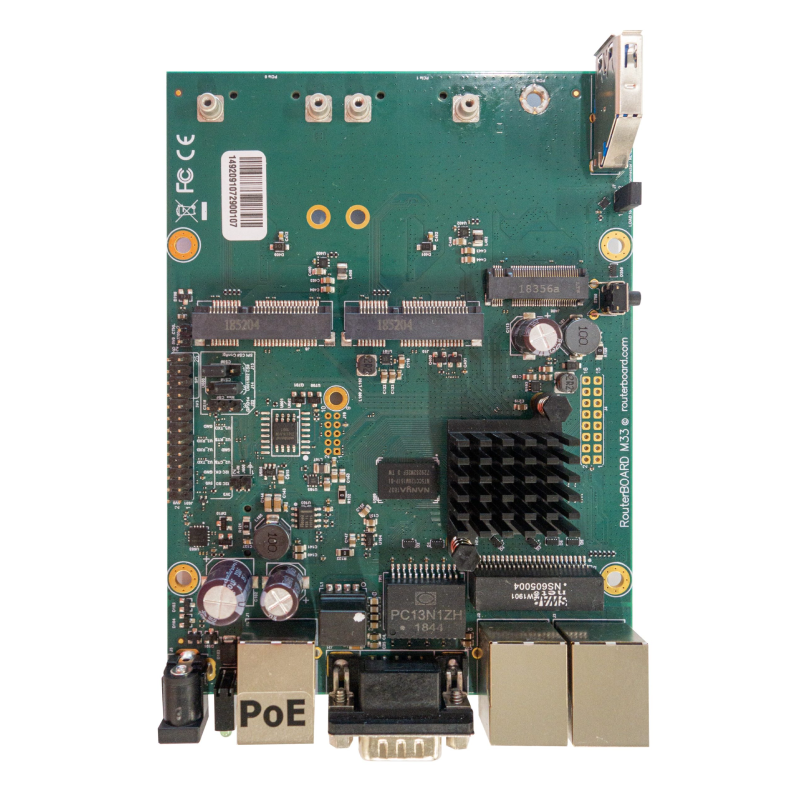

RouterBoard RBM33G
The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
- Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
- One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
Features:
- Dual-core MediaTek 880 MHz processor
- 256MB DDR3 RAM
- 16MB Flash
- 3 gigabit Ethernet ports
- 2 MiniPCIe slots
- 1 USB 3.0 / 2.0 type A
Technical Specifications:
| CPU | MediaTek MT7621 880 MHz, Dual Core |
| Memory | RAM 256MB DDR3 Flash 16 MB |
| Ethernet | 3 x 10/100/1000mbps, Auto-MDI/X |
| MiniPCIe ports | 2 |
| Other | Slot M.2 (SSD) Serial port RS232 USB 3.0 type A |
| Supported input voltage | PoE 10-30 VDC LAN 1 jack 8-30VDC |
| Max Power consumption | Up to 19 Wat |
| License level | RouterOS Level 4 |
| Dimensions | 105mm x 150mm |
| Weight | 137g |
