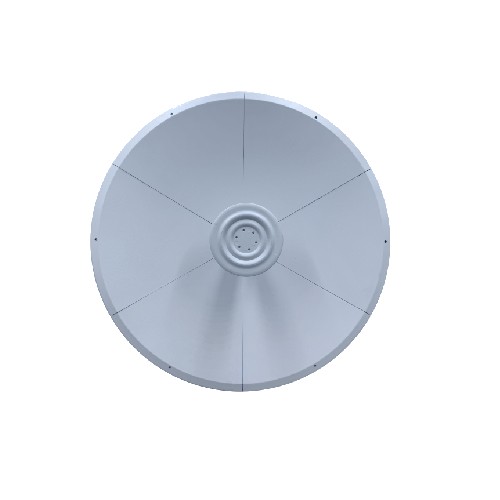

N5-X30 is a versatile dish antenna with a gain of 30dBi and a beamwidth of 5° for use with C5x, C6x, and B5x units. The units connect to the antenna using a Twist-on connector, which eliminates losses caused by RF cabling and connectors. The antenna supports vertical/horizontal or ±45 degree slant polarizationt. Antenna is sold as 2-pack.
Technical parameters
Wireless features
MIMO, SISO:2 x 2, 2 x 2 (slant – 45° turned)
Polarization:VH, VH (slant)
F/B ratio [dB]:35
Cross-Pol Isolation [dB]:30
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:5
Azimuth beam width (-6dB) [°]:5
Antenna type:Directional
Antenna gain [dBi]:30
Connectors and Interfaces
RF connectors:Twist-on port (Mimosa)
Physical characteristics
Designed for mast diameter [mm]:30 up to 80
Purpose:Outdoor
Material:Aluminum
Weight [kg]:6,5
Width [mm]:600
Height [mm]:600
Depth [mm]:330
