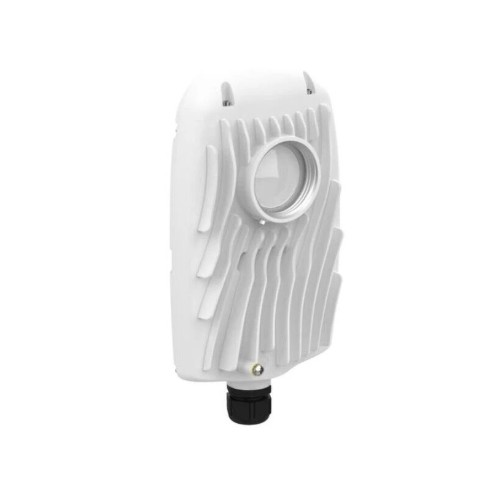

Mimosa B5x is an outdoor PTP unit in a robust chassis with high resistance to interference, IP67 protection with an integrated antenna with 8dBi gain. Possibility of mounting a directional antenna from a wide range (12 to 25 dBi), support for Wi-Fi 5 OFDM technology. The unit has a 4×4 MIMO radio part with a modulation speed of 1700 Mbps at 160 MHz and is able to operate in the frequency band 4900 to 6400 MHz. For network connection, the B5x unit has one Gigabit Ethernet with passive 48V PoE support. Key Features
- t
- Wireless Protocol – Fixed TDMA and TDMA-FD with adjustable download/upload ratio 75:25 / 67:33 / 50:50
- Supports 6 GHz channels – 4 900 to 6 400 MHz
- Durable aluminum chassis, degree of protection IP67, operating temperature -40 to +55 °C
- PTP installation only support
- 4×4 MIMO, 1 700 Mbps, 256 QAM, 160 MHz (2 x 80 MHz)
- High output power 30 dBm
- GPS time synchronization
- Power over 48V passive PoE
t
t
t
t
t
t
t
Package Contents
- t
- Device
Technical parameters Wireless features Frequency range [MHz]:4900 – 6400 Wireless frequency:5 GHz WiFi standards:Mimosa TDMA, TDMA-FD MU-MIMO:Yes Transmission speed – 5GHz [Mb/s]:1733 Tx power 5GHz [dBm]:30 Security:128bit AES 5GHz MIMO:4 x 4 Type of antenna:Detachable Internal antennas:4 Antenna gain [dBi]:8 Connectors and Interfaces RF connectors:Twist-on port (Mimosa) LAN speed:(1) 10/100/1000Mbps Gigabit LAN:Yes GPS modul:Yes Power Power over Ethernet:48V DC PoE type:PoE-In (only) Max. power consumption [W]:20 Physical characteristics Protection class:IP67 Purpose:Outdoor Operating temperature [°C]:-40 up to 55 Weight [g]:1400 Width [mm]:139 Height [mm]:241 Depth [mm]:76 Software Operating mode:Client, Bridge IPv6 support:Yes
