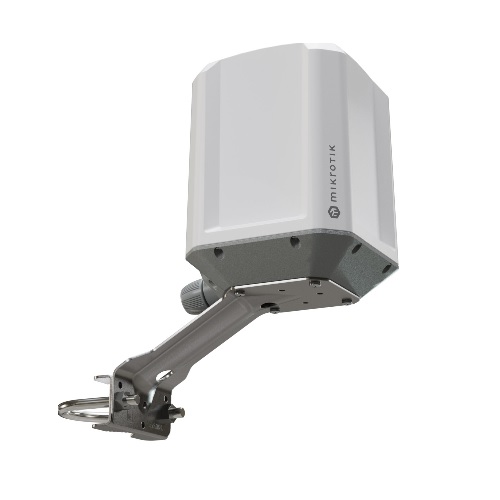

A rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.
| Product | MikroTik LAMP 5G R16 |
| Product code | LAMPGM&RG520F-EU |
| Device type | Rugged outdoor 5G router |
| 5G modem | RG520F-EU |
| 5G support | 5G SA / NSA |
| 5G SA maximum | 4.2 Gbps download / 900 Mbps upload |
| 5G NSA maximum | 5.0 Gbps download / 650 Mbps upload |
| LTE category | Cat 20 |
| LTE maximum | 2.0 Gbps download / 200 Mbps upload |
| 3G | Category R8 — 42.2 Mbps DL / 5.76 Mbps UL |
| 5G SA FDD bands | B1, B3, B5, B7, B8, B20, B28 |
| 5G SA TDD bands | B38, B40, B41, B75, B76, B77, B78 |
| 5G NSA FDD bands | B1, B3, B5, B7, B8, B20, B28 |
| 5G NSA TDD bands | B38, B40, B41, B75, B76, B77, B78 |
| LTE FDD bands | B1, B3, B5, B7, B8, B20, B28, B32 |
| LTE TDD bands | B38, B40, B41, B42, B43 |
| 3G bands | B1, B5, B8 |
| MIMO | 4×4 DL / 2×2 UL |
| Antenna type | Integrated omnidirectional antennas |
| eSIM | Yes |
| Physical SIM | 1 × Micro SIM |
| GNSS | GPS, Galileo, BeiDou, QZSS |
| Ethernet | 1 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE | 802.3af/at PoE-in |
| PoE input voltage | 12–56 V |
| Power consumption | 10 W maximum |
| Cooling | Passive |
| CPU | Marvell 88F3720 |
| CPU cores | 2 |
| CPU frequency | 800 MHz |
| Architecture | ARM 64-bit |
| RAM | 512 MB DDR3L |
| Storage | 32 MB Flash |
| M.2 slot | 1 |
| RouterOS | RouterOS v7 |
| RouterOS license | Level 3 |
| Operating temperature | −40°C to +70°C |
| Protection rating | IP67 |
| MTBF | Approx. 200,000 hours @ 25°C |
| Certifications | CE, EAC, RoHS |
| Maritime standard | EN 60945 compliant |
| Dimensions | 311 × 311 × 179 mm |
| Mounting | Outdoor pole/wall mounting; stainless-steel mounting bracket |
| Included accessories | 24 V / 0.5 A power adapter, mounting hardware, Gigabit PoE injector |
