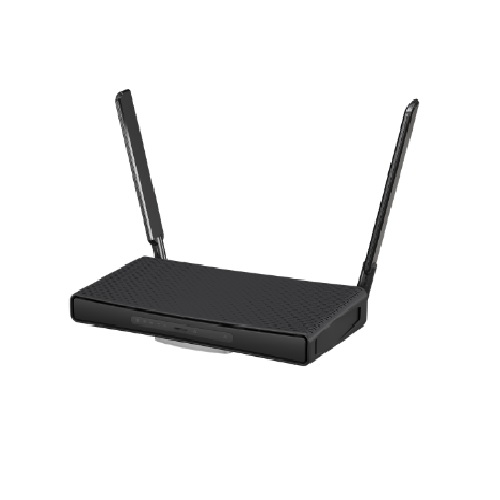

MikroTik C53UiG+5HPaxD2HPaxD, hAP ax³, 3.3dBi, 29dBm 2×2 @ 2.4GHz, 5.5dBi, 28dBm, 2×2 @ 5GHz, Quad-Core 864MHz, 1GB, 4xGigabit, 1×2.5G, WiFi 6, AX1800, L4

Περιγραφή

Our top-of-the-line AX home access point. With all the processing power and speed your household might ever need. Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more! hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem. Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas (via built-in RP-SMA female ports) allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

To sum things up – hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

Specifications

Product Name / Model	MikroTik C53UiG+5HPaxD2HPaxD (hAP ax³)
Product Code	C53UiG+5HPaxD2HPaxD
Device Type	Wi‑Fi 6 Router / Access Point
CPU	Quad‑Core IPQ‑6010, up to 1.8 GHz
CPU Architecture	ARM 64‑bit
RAM	1 GB
Storage	128 MB NAND
Operating System	RouterOS v7 (License Level 6)
MTBF	~200,000 hours at 25 °C
Ethernet Ports	4 × Gigabit Ethernet
Multi‑Gig Port	1 × 2.5 Gigabit (supports PoE‑in/out)
USB Ports	1 × USB 3.0 Type‑A (with power reset support)
Wireless Standards	802.11b/g/n/ax (2.4 GHz), 802.11a/n/ac/ax (5 GHz)
Wi‑Fi Band	Dual‑band Wi‑Fi 6 (AX1800 class)
Max 2.4 GHz Data Rate	574 Mb/s
Max 5 GHz Data Rate	1200 Mb/s
Antenna Configuration	Dual‑chain per band (2×2 MIMO)
Antenna Gain	3.3 dBi (2.4 GHz), 5.5 dBi (5 GHz)
Security	WPA3, WPA2, IPsec hardware acceleration
Power Inputs	DC jack 12–28 V; Passive PoE‑in 18–28 V
PoE‑Out	Passive PoE on Ether1 (max 15 W total)
Power Consumption	Up to ~38 W
Cooling	Passive (no fan)
Dimensions	251 × 130 × 39 mm
Operating Temp Range	‑40 °C to +70 °C
Certifications	CE, FCC, IC, EAC, RoHS

Package Contents

24V 1.5A power adapter

HGO indoor antenna kit

K-47 wall mount set

hAP case base
