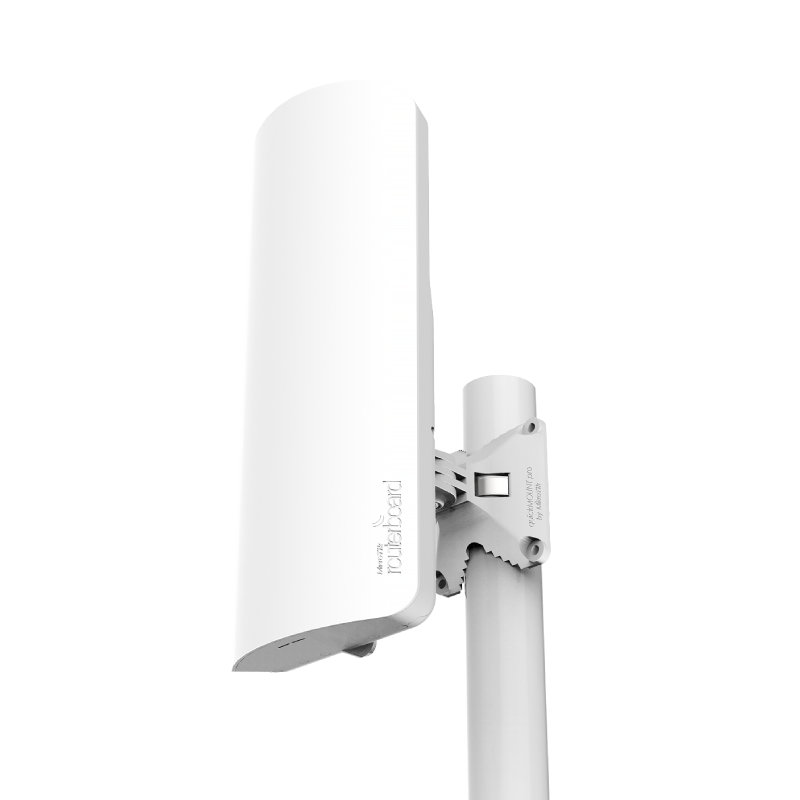

mANTBox 52 15s
Are you managing an outdoor wireless network with a variety of access points and CPE devices? Then our brand new mANTBox 52 15s has got you covered – offering powerful built-in antennas, fascinating connectivity options and more!
Creating an efficient point-to-multipoint connection used to be tricky, but not anymore: mANTBox 52 15s works well in any setup. The dual-band wireless capability allows you to use both 2.4 GHz and 5 GHz devices at the same time. There is a Gigabit Ethernet port and an SFP port for fiber connections.
We have doubled the RAM and added a new quad-core CPU that can handle even the heaviest loads. mANTBox 52 15s can even provide IPsec hardware offloading without trouble. Depending on the rest of your setup, you can reach distance up to 20 km with the built-in dual polarization antenna.
Technical Specifications:
| CPU | 4 core IPQ-4019 716 MHz |
| RAM | 256 MB |
| Storage | 16 MB flash |
| Number of 1GbE ports | 1 |
| Number of 1G SFP ports | 1 |
| Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| PCB temparature monitor | Yes |
| Voltage monitor | Yes |
| USB port | USB type A |
| Operating system | RouterOS, License level 4 |
| Antenna gain | 12 dBi (2.4 GHz), 15 dBi (5 GHz) |
| Antenna beam width | 90° (2.4 GHz), 60° (5 GHz) |
| Polarization | Vertical and horizontal |
| Tested ambient temperature | -40°C to +70°C |
| Max power consumption without attachments | 15 W |
| Max power consumption | 21 W |
| Dimensions | 140 x 348 x 82 mm |
