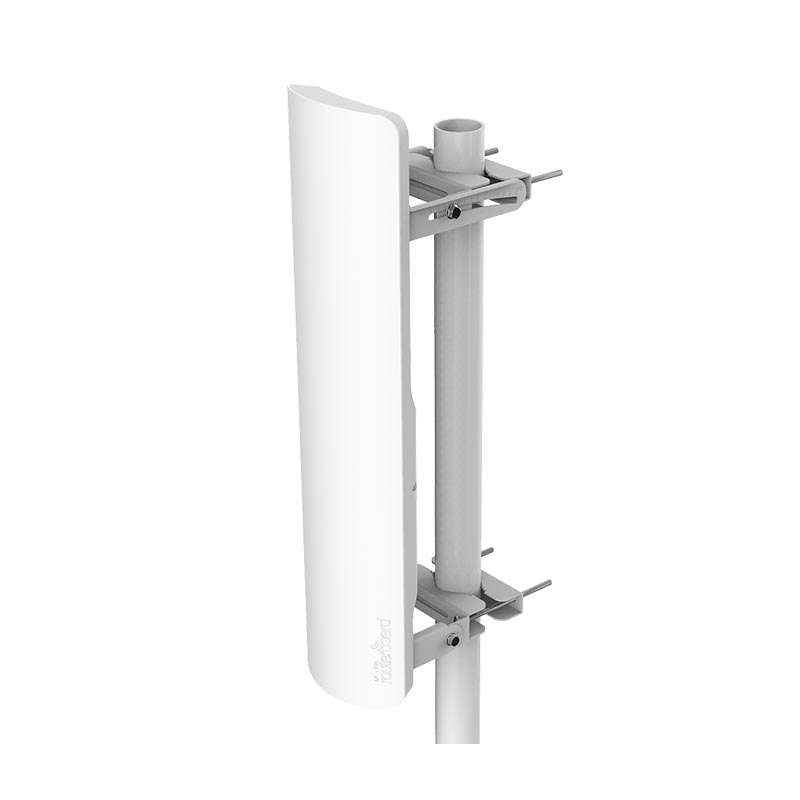

RTB-MTAS-5G-19D120
The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.
Technical Specifications:
| Product code | MTAS-5G-15D120 | MTAS-5G-19D120 |
| Antenna gain | 15 dbi | 19 dbi |
| Frequency range | 5.17 – 5.825 GHz | 5.17 – 5.825 GHz |
| Polarization | Vertical and horizontal | Vertical and horizontal |
| 3DB Beamwidth – azimuth | 120° | 120° |
| 3DB Beamwidth – elevation | 10° | 5° |
| VSWR | 1.43 typ, 1.8 max | 1.43 typ, 1.8 max |
| Port to Port isolation | >40 dB min | >40 dB min |
| Front-to-Back ratio | >30 dB | >30 dB |
| Cross Polarization | >30 dB | >30 dB |
| Weight | 734 g | 1270 g |
| Dimensions | 140 x 348 x 82 mm | 152 x 598 x 78 mm |
