LtAP mini

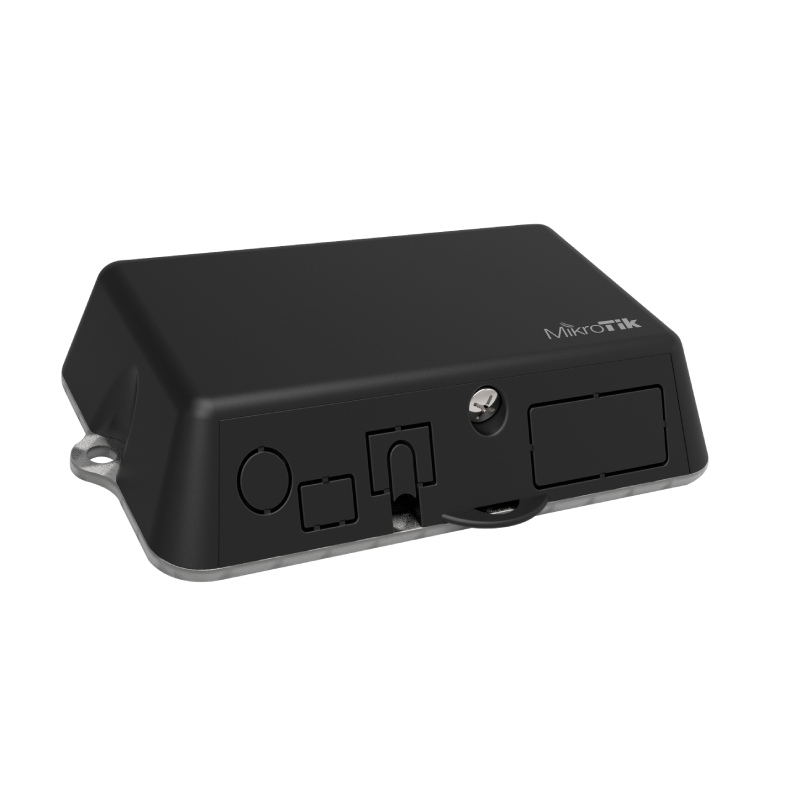

The LtAP mini is a small weatherproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.
The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).
Technical Specifications:
| Hardware | |
|---|---|
| Architecture | ARM 32bit |
| CPU | QCA9531 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 139 x 77 x 28,5 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| Max Power consumption | 4W |
| PoE in | Passive PoE and 802.3af/at |
| PoE in input Voltage | 10-57 V |
| DC jack Voltage | 8-30 V |
| MicroUSB Voltage | 5V |
| Number of DC inputs | 3 (PoE-IN, DC jack, microUSB) |
| Wireless | |
| Band | 2.4 GHz |
| Wireless standards | 802.11b/g/n |
| Wireless 2.4 GHz chip model | Built-in QCA9531 |
| Maximum output power | 22 dBm |
| Maximum sensitivity | -96 dBm |
| Antenna beam width | 360° |
| Antenna gain | 1.5 dBi |
| GPS | |
| GPS chip model | Built-in MT3337V |
| RF connector | uUFL |
| Active antenna support | Yes |
| LTE | |
| LTE modem | Not included |
| SIM slot | 2x Mini SIM |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Serial port | RS232 shared with GPS port |
