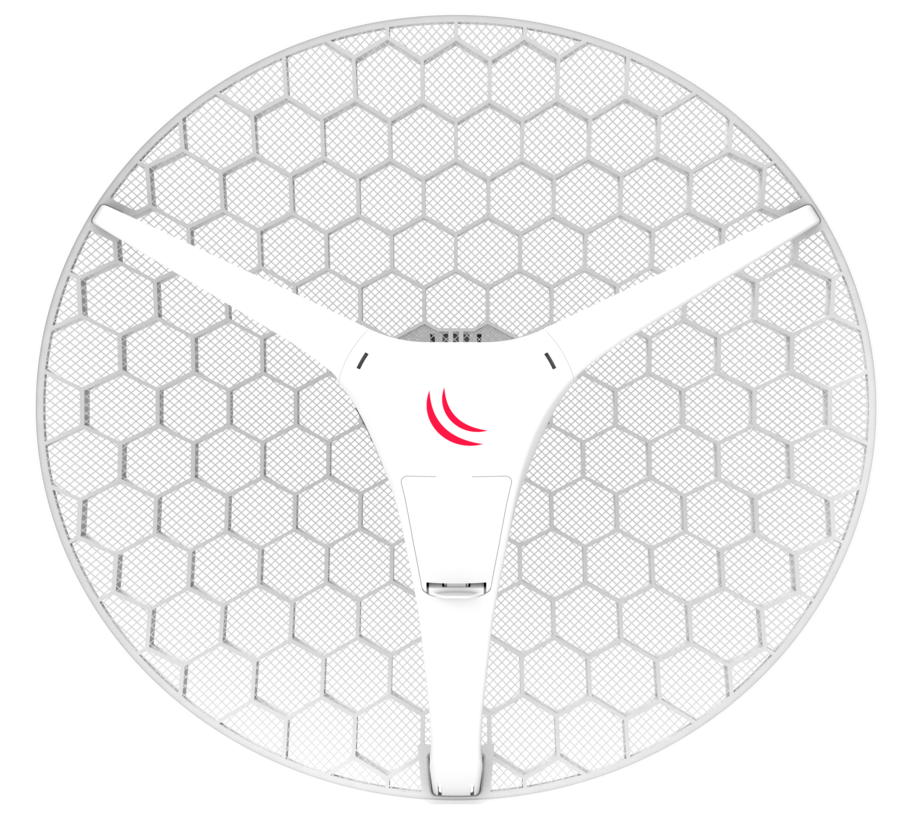

LHG XL 2
The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarisation grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE.
LHG XL 2 is equipped with 21 dBi grid antenna for longer distances.
Technical Specifications:
| Hardware | |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | dis 550 x 245 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| Max Power consumption | 5W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Wireless | |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 21 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Wireless specifications | |
| Max. Transmit Power (dBm) | 25 |
| Max. Receive Sensitivity (dBm) | -100 |
