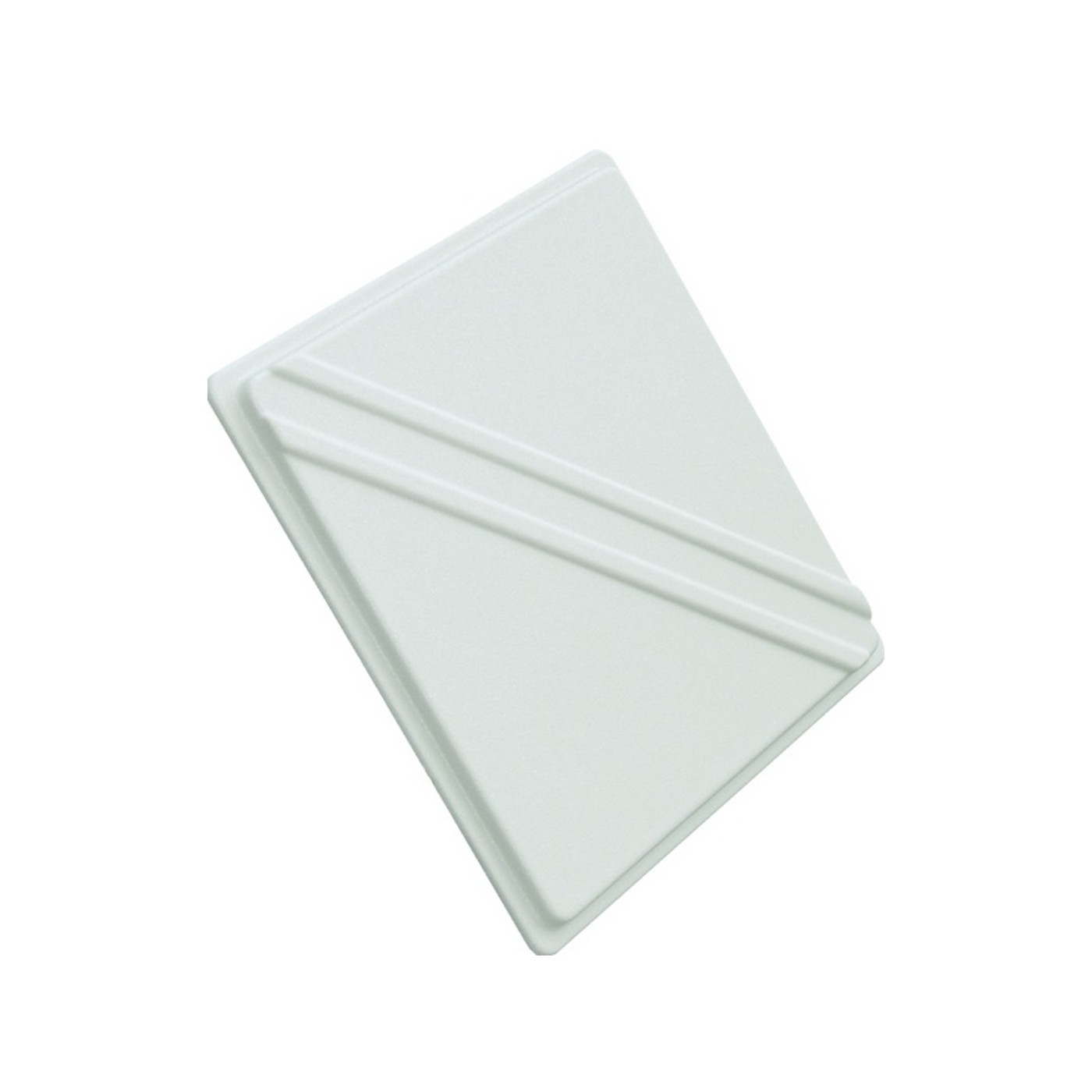

Antenna PANEL 23 is one of the most powerful antenna for 5GHz band. Specially designed to support the full range of IEEE 802.11a standard. In the whole band has a good match that provides high data transfer rates and link stability even when working with dynamic channel selection.
PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process. The modular design ensures perfect fitting what guarantee reliable performance in all weather conditions and constant high quality. Small in size, weight and aesthetic appearance makes them a discreet and elegant solution for any wireless subscriber.
| PANEL 23dBi / 5.2-5.8GHz Specifications | |
|---|---|
| Frequency (min) |
5 150MHz
|
| Frequency (max) |
5 850MHz
|
| Gain |
23dBi
|
| VSWR (max) |
1.60:1
|
| Polarization |
Horizontal or
Vertical |
| Half Power Beam Width (-3dB) – horizontal | 10° |
| Half Power Beam Width (-3dB) – vertical | 10° |
| FBR (Front/Back Ratio) | >35dB |
| XPD (Cross Polarization Discrimination) | >24dB |
| DC Ground | yes |
| Impedance | 50Ω |
| Connector | N female |
| Mounting Diameter | ø 38…51mm |
| Dimensions (excl. mount) |
315x315x19mm
|
| Weight (incl. mount) | 1.12kg |
| Enviroment | Outdoor |
| Windload | 133N (@170km/h) |
| IP64 | |
