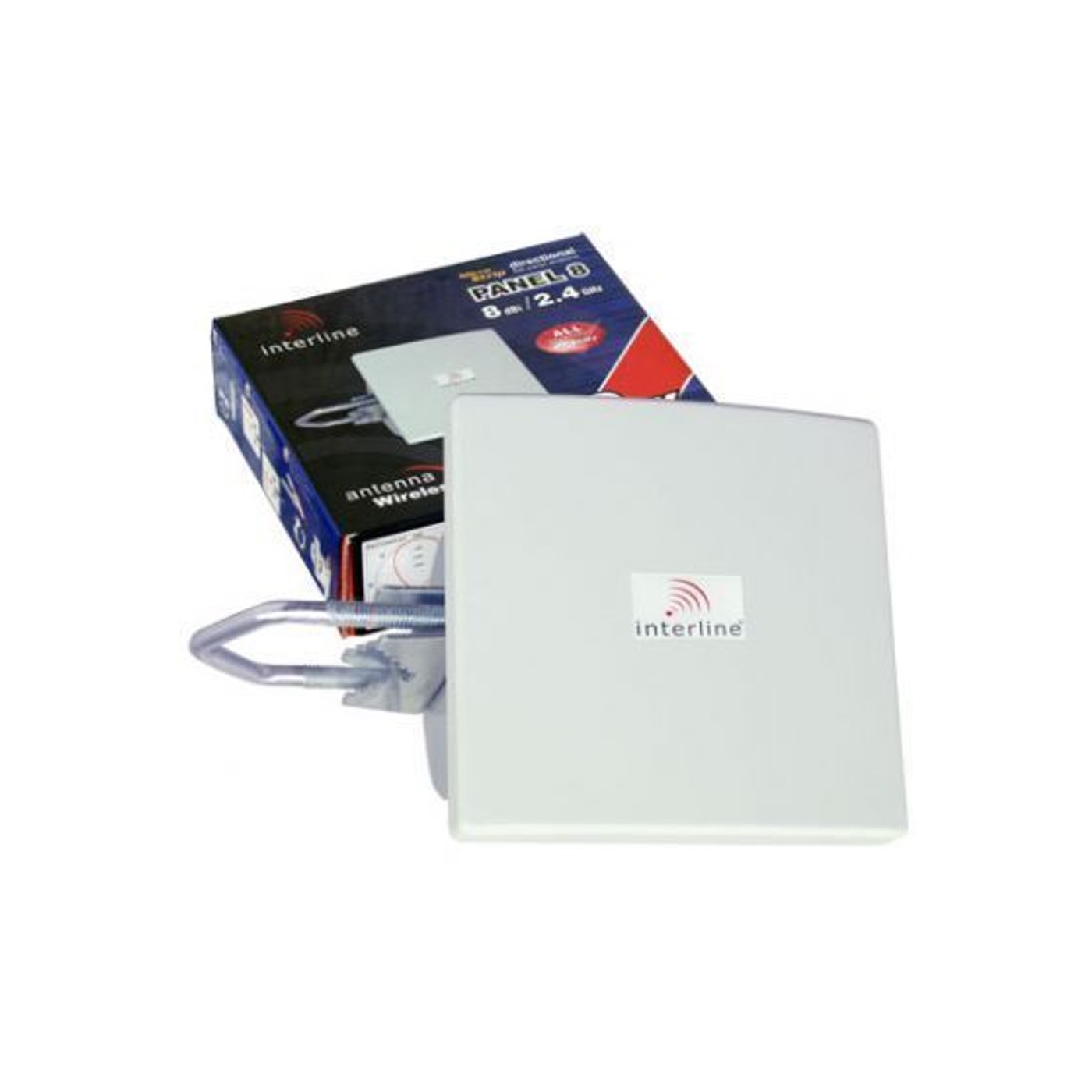

Directional, high gain flat panel antenna for mobile broadband. Working frequency range cover European’s UMTS/LTE bands, designed for mounting on both the outside and inside buildings. PANEL antenna series are constructed in Microstrip technology which ensures excellent repeatability of electrical parameters of the antenna in the production process. Modular construction provides the perfect folding structural elements, which ensures reliable operation in the harshest weather conditions and guarantees constant high quality of production.
Key benefits
- t
- Radiators Protection
Features
- t
- Adjustable mounting
- Adjustable polarization
t
| PANEL 8dBi 3G-UMTS Specifications : | |
|---|---|
| product code | INT-PAN-08/3G-HV |
| frequency | 1900-2200MHz |
| gain | 8dBi |
| VSWR (max) | 1.5 |
| polarization | horizontal or vertical |
| beamwidth (-3dB): horizontal | 60° |
| beamwidth (-3dB): vertical | 60° |
| front to back ratio | > 20dB |
| cross polarization | > 8dB |
| impedance | 50Ω |
| lighting protection | shorted for DC |
| dimensions (excl. mounting) | 115x115x18mm |
| weight (incl. mounting) | 0.35kg |
| connector | RP-SMA |
| mounting diameter | ø 38…51mm |
| wind load (170km/h) | 18 N |
