Περιγραφή

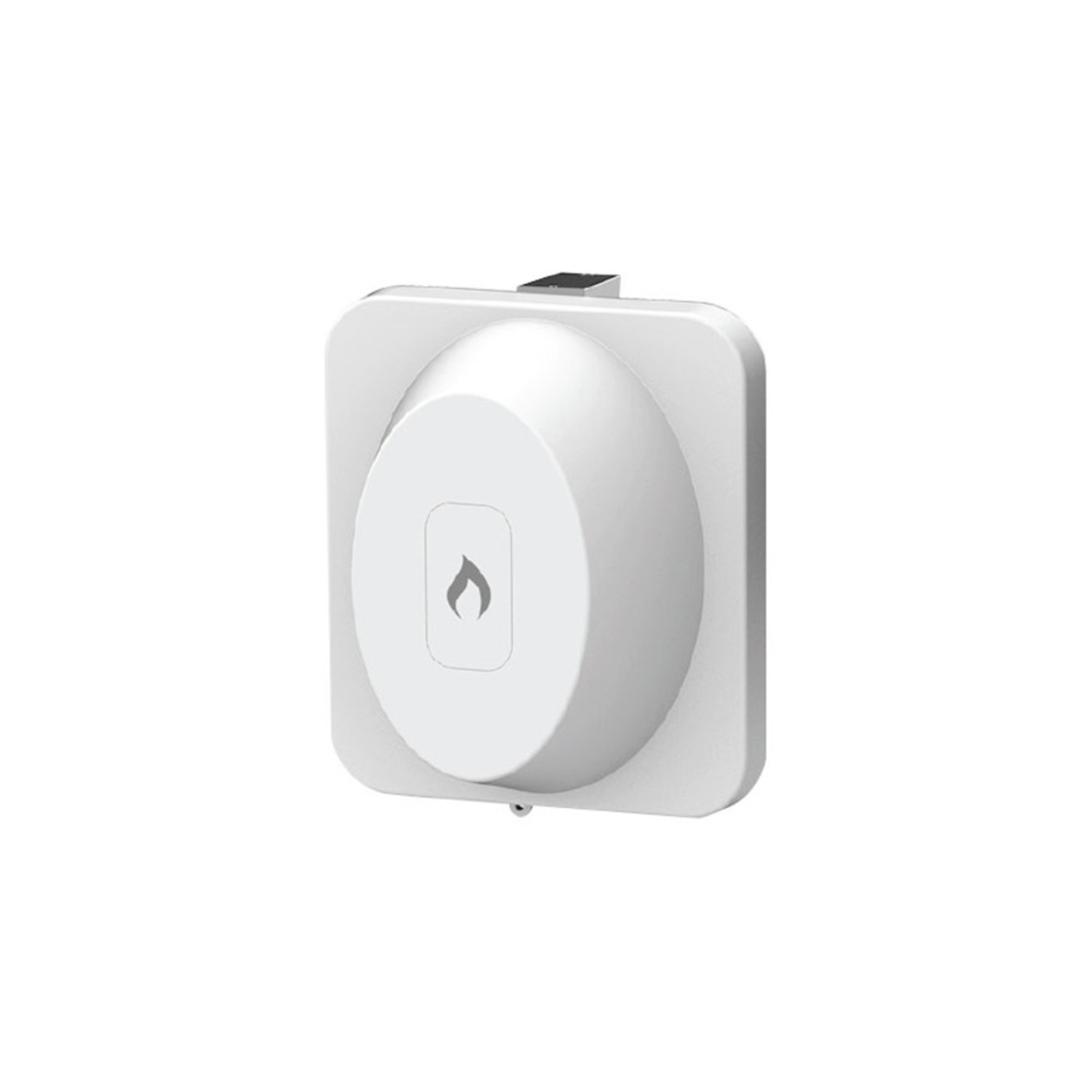

ML1-60-19, IgniteNet™’s MetroLinq™ One 60 is a costeffective high capacity 60GHz PTP radio enabling high performance, interference-free connections worldwide. The MetroLinq™ One 60 has an added advantage of being licensefree in most markets globally, allowing ultra fast deployment and without the hassle of other frequency bands requiring a license. The MetroLinq™ One 60 also includes a second 5GHz radio which can be configured as PTP (backup) to provide integrated redundancy without any additional hardware or complexity and additional 2.4GHz radio for management and configuration*. The IP55 standards rated enclosure, allows MetroLinq™ One 60 to withstand harsh environments and bring fast wireless connections to hard-to-reach locations.
ML1-60-19 Specifications
| HARDWARE FEATURES | 2x RPSMA connectors for external 2.4GHz antenna 1x Gigabit Ethernet Port (PoE IN) 1x SFP port 1x Screw Terminal (Power IN/OUT) 1x USB 2.0 Port Dual flash image support IP55 standards rated enclosure |
| LEDs | › Power, Ethernet, SFP, 2.4/5GHz, 60GHz |
| DIMENSIONS (L x W x H ) | 190 x 190 x 120 mm/ 7.48 x 7.48 x 4.72 in (ML1-60-19) |
| WEIGHT | 1.25 kg/ 2.76 lb without mount (ML1-60-19) |
| POWER | 24-48V/1A passive Gigabit PoE 17.5W max power consumption |
| OPERATING ENVIRONMENT | |
| › Operating Temperature: | -30 to 55º C/ -22 to 131º F |
| Store Temperature: | -40 to 70º C/ -40 to 158º F |
| Operating Humidity: | 10 to 90% non-condensing (RH) |
| REGULATORY / STANDARDS COMPLIANCE | › FCC/IC › CE |
