Περιγραφή

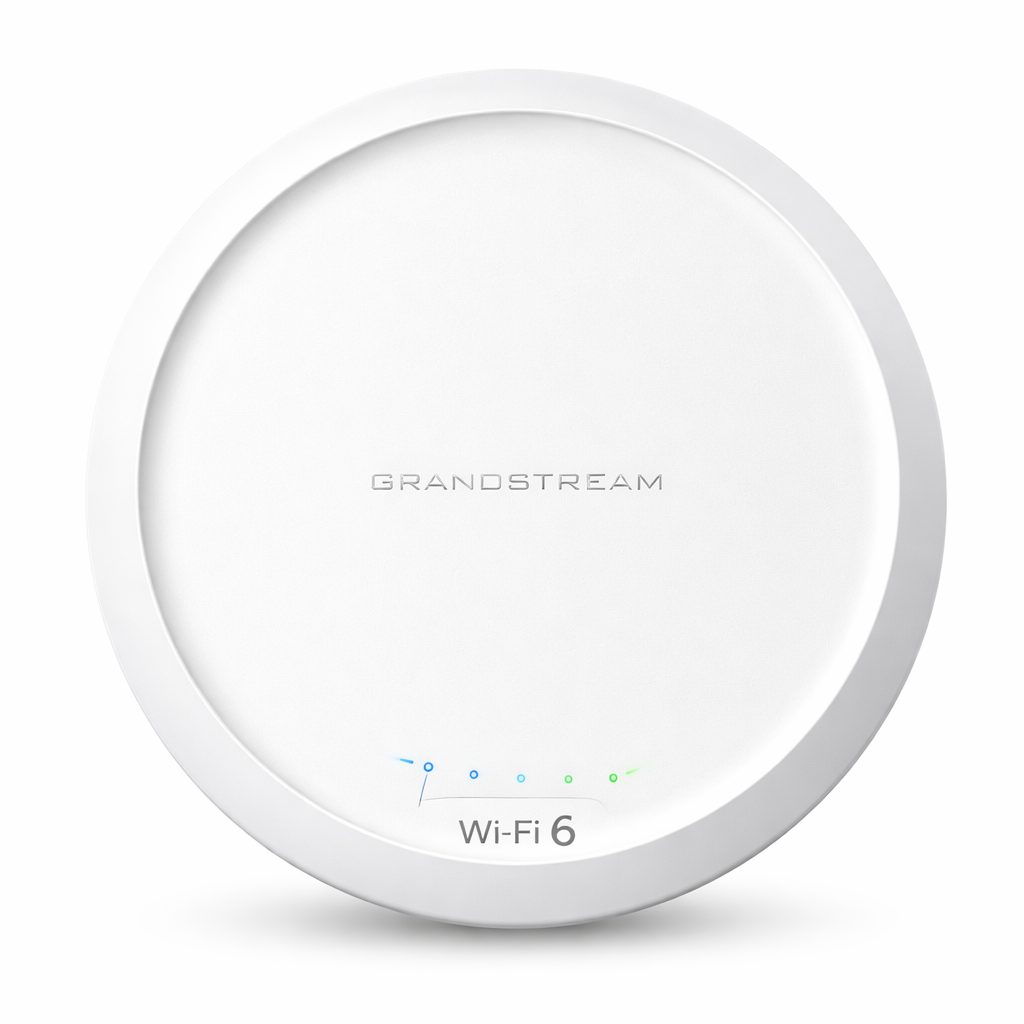

The GWN7660E is an enterprise-grade Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2×2:2 MU-MIMO technology on the 2.4G band and 3×3:2 MU-MIMO on the 5G band as well as a sophisticated antenna design and uses XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range.To ensure easy installation and management, the GWN7660E uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660E is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency realtime applications, mesh networks, captive portals, 256 concurrent clients per AP and Gigabit network ports with PoE/ PoE+, GWN7660E is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Specifications
| Model | GWN7660E |
| Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands | Dual-band: 2.4 GHz & 5 GHz |
| Aggregate Throughput | Up to ~3 Gbps total |
| 2.4 GHz Throughput | 573.5 Mbps (2×2:2 MU-MIMO) |
| 5 GHz Throughput | 2.4 Gbps (3×3:2 MU-MIMO) |
| Concurrent Clients | Up to 256 devices |
| MIMO Technology | 2×2:2 (2.4 GHz), 3×3:2 (5 GHz) |
| Coverage Range | Up to ~175 meters (indoor) |
| Network Interfaces | 1× autosensing 10/100/1000 Base-T Ethernet Port (PoE) |
| PoE/Power | PoE 802.3af/802.3at support; ~12.95 W max |
| SSIDs Supported | 32 SSIDs (16 per radio) |
| Antennas | 5 internal antennas |
| Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, unique certificate/random default password |
| Management Options | Embedded controller (up to 50 local APs), GWN.Cloud, GWN Manager |
| Mounting | Ceiling or wall mount |
| Dimensions | 180.4 × 180.4 × 40.8 mm |
| Weight | ~385 g |
| Wi-Fi Features | OFDMA, beamforming, advanced QoS |
| Certifications | CE, FCC, IC, RoHS (varies by region) |
