Περιγραφή

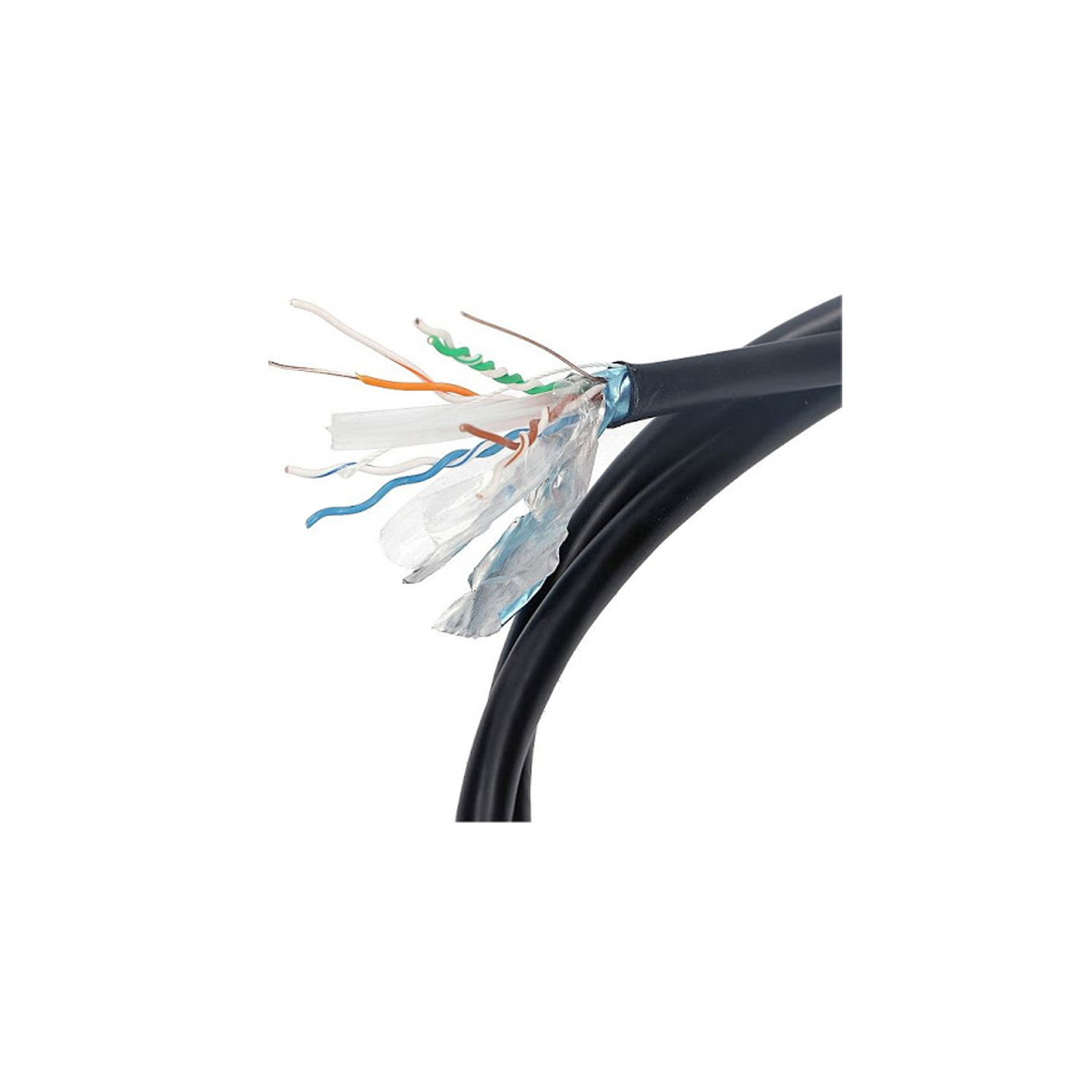

Outdoor Network FTP Cat.6 cable. Built from 23 AWG copper conductor pairs coated by PE Solid. Shielded by aluminum foil. Additional drain wire helps ground ESD attacks. All coated PE outer jacket 0.60 ± 0.05mm thick, designed to work in every weather and environment.Cable packed in to 1000ft. (304.8m) easy to use rolls. Special internal rotating mechanism prevents cable damage while unrolling.
Product specification
Conductor type :SOLID-Bare copper
Conductor diameter :0.56mm ± 0.005mm
Conductor AWG :23
Insulation type :PE solid
Insulation diameter :1.08mm ± 0.03mm
Insulation synthetical separation foil :Polyester
Insulation drain wire :0.5mm CCS
Insulation shielding :Yes
Insulation rip cord :Yes
Outer jacket type :PE
Outer jacket colour :Black
Outer jacket thickness :0.6mm ± 0.05mm
Outer jacket external diameter :7.5mm ± 0.2mm
Max linear resistance :≤80 Ω/km
Mutual capacity (nom.) :56 pF/m
Unbalance capacity max (p/p at 1 KHz) :1600 pF/km
Characteristic impedance (1 at 100 MHz) :100 ± 15 Ω
Velocity of propagation (f>1MHz) :66 % of c
