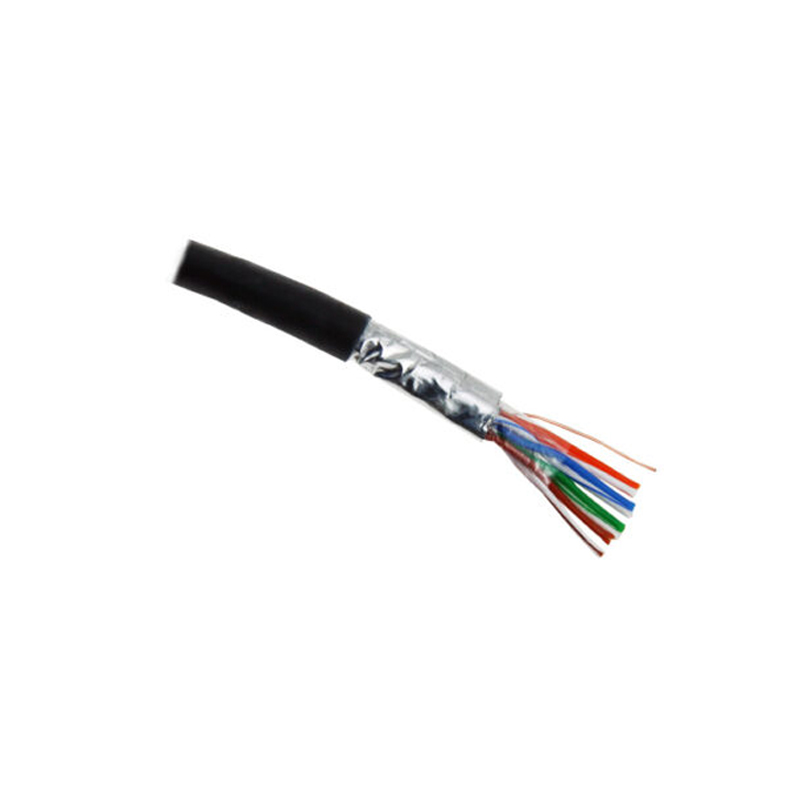

Protect your networks from harmful outdoor environments with Ubiquiti’s industrial-grade shielded Ethernet cable, TOUGHCable™. A Category 5e, outdoor, carrier-class shielded cable features an integrated ESD drain wire. Features:
- t
-
- t
- Extreme Weatherproofing
- ESD Damage Protection
- Extended Cable Support
t
t
| Cable | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid PE |
| Insulation Thickness | Avg. 0.26 mm Min. 0.25 mm |
| Insulation Diameter | 1.04 ± 0.03 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | None |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 18 mm |
| ESD Drain Wire | 0.4 CCS |
| Rip Cord | Yes |
| Jacket Material | PE |
| Jacket Thickness | Avg. 0.50 mm Min. 0.46 mm |
| Jacket Outer Diameter | 6.0 ± 0.30 mm |
| Jacket Color | Black |
| Reference Standard | ISO/IEC 11801, TIA/EIA568B.2 |
| Installation Temperature | -20 to 60° C (-4 to 140° F) |
| Storage Temperature | -30 to 75° C (-22 to 167° F) |
| Operation Temperature | -40 to 80° C (-40 to 176° F) |
| Operation Temperature | -40 to 80° C (-40 to 176° F) |
