Περιγραφή

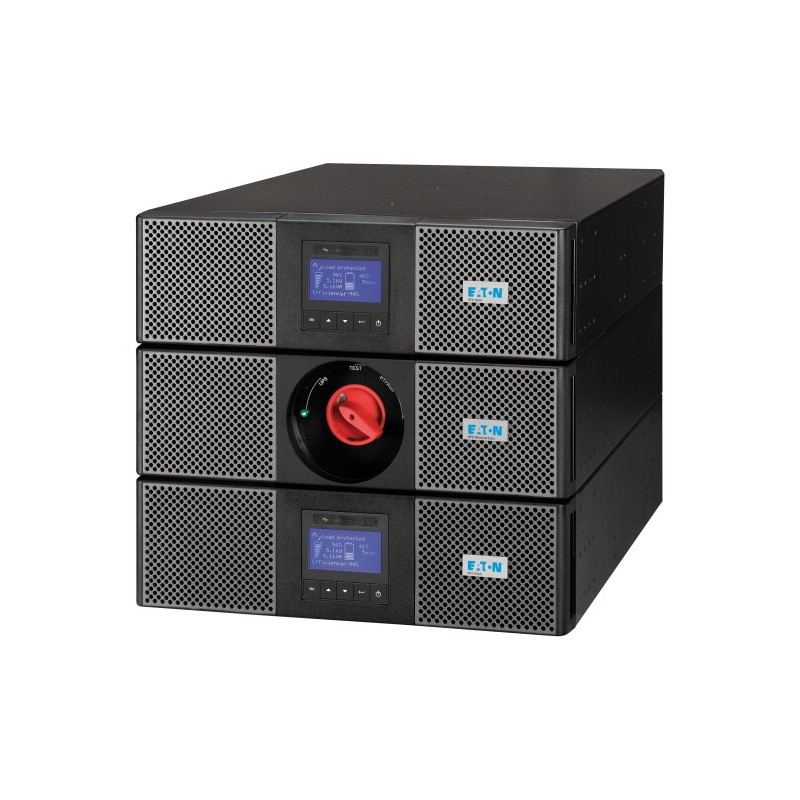

Eaton 9PX UPS 22Ki 11Ki Redundant Netpacki, 22 kVA, 20 kW, Input: Hardwired, Outputs: (4) C19, Hardwired, Rack/tower, 15U, Network card included
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PXM22KIRTN
PRODUCT LENGTH/DEPTH
70 cm
PRODUCT HEIGHT
65 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
187 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
UPC
743172045348
MODEL CODE
Eaton 9PX 22Ki 11Ki Red. RT15U Netpack
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
12 (supercharger required for more than 6 EBM)
WATTAGE
20 kW
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
2
INCLUDES NETWORK CARD
Yes
INPUT CONNECTION
Hardwired/fixed connection
INPUT VOLTAGE – MIN
100 V
OUTPUT VOLTAGE – MAX
250 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
Hot-swappable battery modules
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
NUMBER OF OUTPUTS HARDWIRED
1
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Network card and rackmounting kit delivered as standard
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (at the UPS level)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Network card and rackmounting kit delivered as standard
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (at the UPS level)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240/250 V +/- 1%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 4094
EFFICIENCY (ECO-MODE)
98
BACK-UP TIME
10 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
INTEGRATED FUNCTIONALITY
Network Mangement
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C19
4
VA RATING
22 kVA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(4) C19, Hardwired
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) UPS
ModularEasy
2 Connection cables from the UPS to the ModularEasy
DB15 Cable
(2) Network Management Card
Link plates
(2) Supports for tower mounting
(5) Rack-mounting kit
User manual
ModularEasy
2 Connection cables from the UPS to the ModularEasy
DB15 Cable
(2) Network Management Card
Link plates
(2) Supports for tower mounting
(5) Rack-mounting kit
User manual
NOISE LEVEL
<50 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
2 x 20
RACK SIZE
15U
VOLTAGE
230V
HOT SWAP POWER
Yes
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
Yes
PROTOCOL
SNMP
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
Network cards
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
Network cards
RELATIVE HUMIDITY
0-95% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
3 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
40 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
EXPANSION SLOTS
One slot, network card included
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
