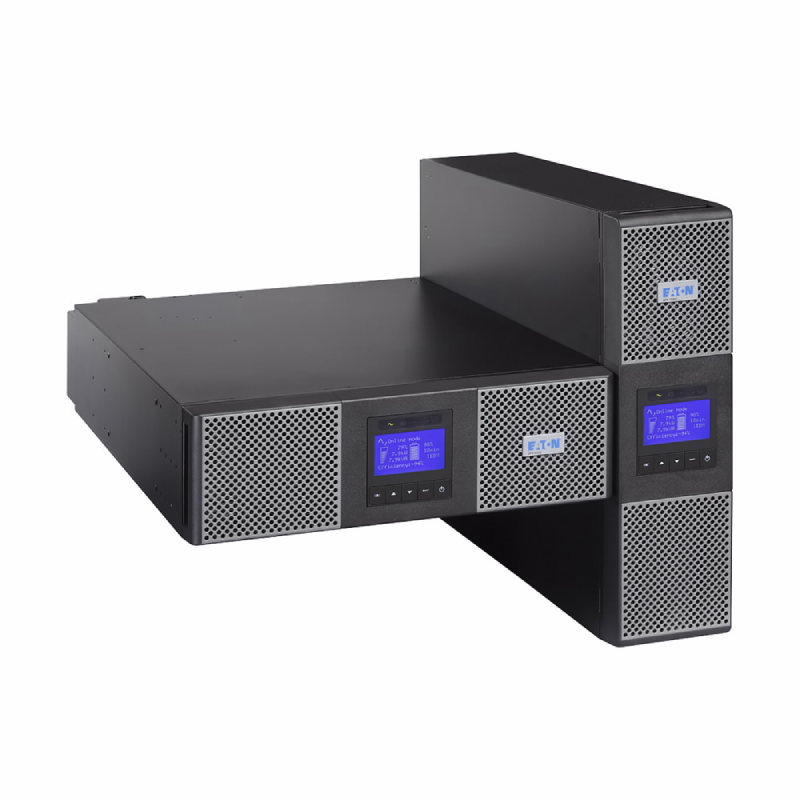

Eaton 9PX 3:1 Power Module, 6000 VA, 5400 W, Input: Hardwired, Outputs: Hardwired, Rack/tower, 3U
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX6KIPM31
PRODUCT LENGTH/DEPTH
70 cm
PRODUCT HEIGHT
44 cm
PRODUCT WIDTH
13 cm
PRODUCT WEIGHT
23 kg
WARRANTY
2 year
COMPLIANCES
TUV
CE Marked
CE Marked
CERTIFICATIONS
IEC/EN 62040-2
IEC/EN 62040-1
CE
EAC
IEC/EN 62040-1
CE
EAC
UPC
743172040114
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
12 (supercharger required for more than 6 EBM)
WATTAGE
5400 W
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
2
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Hardwired/fixed connection
INPUT VOLTAGE – MIN
305 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
No battery
EFFICIENCY
94
NUMBER OF OUTPUTS HARDWIRED
1
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy efficient, reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Meter energy consumption (at the UPS level)
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy efficient, reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Meter energy consumption (at the UPS level)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 1105
EFFICIENCY (ECO-MODE)
98
BACK-UP TIME
0 min
INPUT NOMINAL VOLTAGE
400V default (380/400/415V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
408 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
VA RATING
6000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
Hardwired
PHASE (INPUT)
3
PACKAGE CONTENTS
Power Module
USB cable
Serial cable
(2) Supports for tower mounting
Safety instructions
Quickstart guide
USB cable
Serial cable
(2) Supports for tower mounting
Safety instructions
Quickstart guide
NOISE LEVEL
<48 dB at 1 meter
FEED TYPE
2
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
0
RACK SIZE
3U
VOLTAGE
400V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
RELATIVE HUMIDITY
0-95% non-condensing
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
0 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
40 Hz
TYPE
Power Module
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
305-480 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
