Περιγραφή

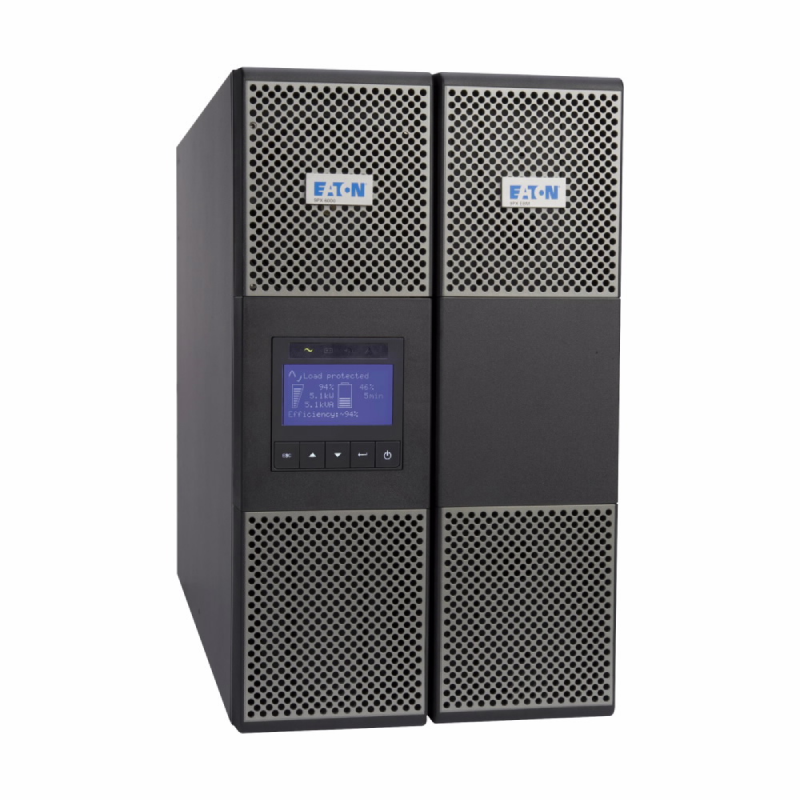

Eaton 9PX UPS HotSwap BS, 3000 VA, 3000 W, Input: C20, Outputs: (3) BS, (1) C19, Rack/tower, 3U
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX3000IRTBPB
MODEL CODE
Eaton 9PX 3000i RT3U HotSwap BS
UPC
743172081582
PRODUCT LENGTH/DEPTH
48.5 cm
PRODUCT HEIGHT
13 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
27.41 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CE Marked
CSA 22.2
TUV
CISPR22 Class B
cULus Listed
FCC part 15 Class B
CSA 22.2
TUV
CISPR22 Class B
cULus Listed
FCC part 15 Class B
CERTIFICATIONS
ENERGY STAR certified
IEC/EN 62040-1
CE
IEC/EN 62040-2
cULus Listed
EAC
UL 1778
IEC/EN 62040-1
CE
IEC/EN 62040-2
cULus Listed
EAC
UL 1778
MODEL CODE
Eaton 9PX 3000i RT3U HotSwap BS
BATTERY
RUNTIME GRAPH
View runtime graph
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY QUANTITY
6
BATTERY RATING
12 V / 9 Ah
BATTERY TYPE
Sealed, lead-acid
EXTENDED BATTERY CAPABILITY
Yes
ELECTRICAL OUTPUT
RECEPTACLE
(3) BS, (1) C19
OUTPUT POWER FACTOR
1
OUTPUT WAVEFORM
Sine wave
VOLTAGE
230V
VA RATING
3000 VA
WATTAGE
3000 W
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
OUTPUT FREQUENCY
50/60 Hz
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
ELECTRICAL INPUT
INPUT CONNECTION
C20
INPUT CORD LENGTH
1.8m
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
INPUT FREQUENCY RANGE
40-70 Hz
INPUT POWER FACTOR
>.99
COMMUNICATIONS
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
EXPANSION SLOTS
One slot for optional communication card
ETHERNET INTERFACE
No
INCLUDES NETWORK CARD
No
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
USER INTERFACE
Multilingual graphical LCD display
TYPE OF INTERFACE
Other
POTENTIAL FREE SWITCH CONTACT
Yes
ENVIRONMENTAL
ALTITUDE
3000 m
BTU RATING
Online: 614
NOISE LEVEL
<40 dB at 1 meter
RELATIVE HUMIDITY
0-96% non-condensing
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ADDITIONAL SPECIFICATIONS
FORM FACTOR
Rack/tower
RACK SIZE
3U
CONSTRUCTION TYPE
482.6 mm (19 inch) device
COLOR
Black/silver
RACK MOUNTING KIT
Yes
PACKAGE CONTENTS
UPS
Input cable
Maintenance Bypass
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
Input cable
Maintenance Bypass
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
EFFICIENCY
94
PHASE (INPUT)
1
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
HOT SWAP POWER
Yes
AUTO SHUTDOWN FUNCTION
Yes
