Περιγραφή

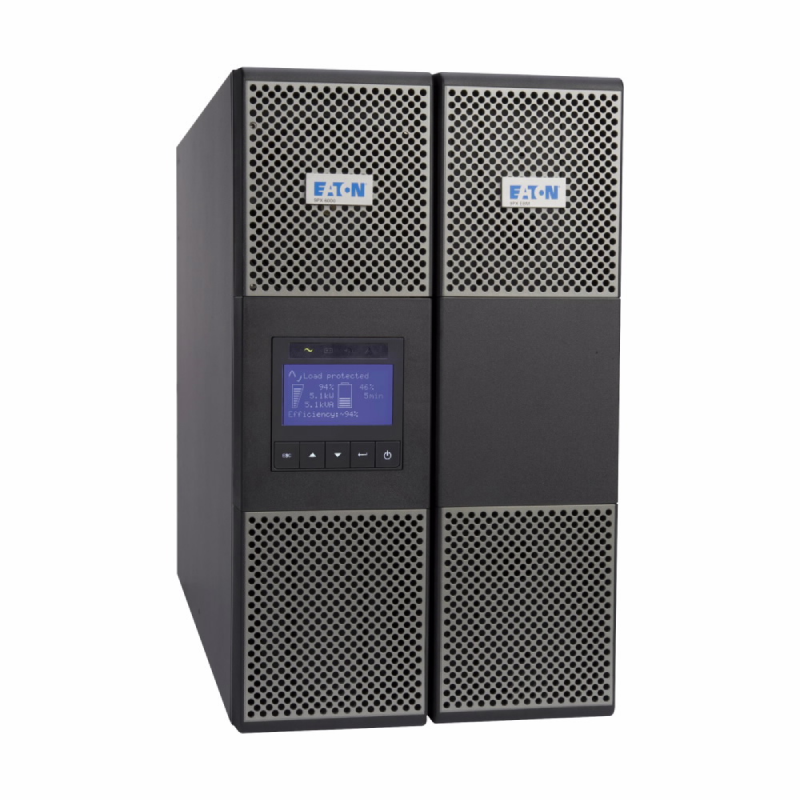

Eaton 9PX UPS HotSwap DIN, 2200 VA, 2200 W, Input: C20, Outputs: (4) Schuko, (1) C19, Rack/tower, 3U
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX2200IRTBPD
UPC
743172081520
PRODUCT LENGTH/DEPTH
48.5 cm
PRODUCT HEIGHT
13 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
24.52 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CSA 22.2
FCC part 15 Class B
cULus Listed
CISPR22 Class B
CE Marked
TUV
FCC part 15 Class B
cULus Listed
CISPR22 Class B
CE Marked
TUV
CERTIFICATIONS
EAC
UL 1778
ENERGY STAR certified
CE
cULus Listed
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
ENERGY STAR certified
CE
cULus Listed
IEC/EN 62040-1
IEC/EN 62040-2
MODEL CODE
Eaton 9PX 2200i RT3U HotSwap DIN
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
2200 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C20
INPUT VOLTAGE – MIN
100 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
93.5
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 4 optional EBM
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 4 optional EBM
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 488
EFFICIENCY (ECO-MODE)
98
BACK-UP TIME
10 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C19
1
VA RATING
2200 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(4) Schuko, (1) C19
PHASE (INPUT)
1
PACKAGE CONTENTS
UPS
Input cable
Maintenance Bypass
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
Input cable
Maintenance Bypass
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
6
RACK SIZE
3U
VOLTAGE
230V
HOT SWAP POWER
Yes
INPUT CORD LENGTH
1.8m
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
RELATIVE HUMIDITY
0-96% non-condensing
RACK MOUNTING KIT
Yes
NUM OF OUTPUTS PC (SCHUKO)
4
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
3 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
40 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
