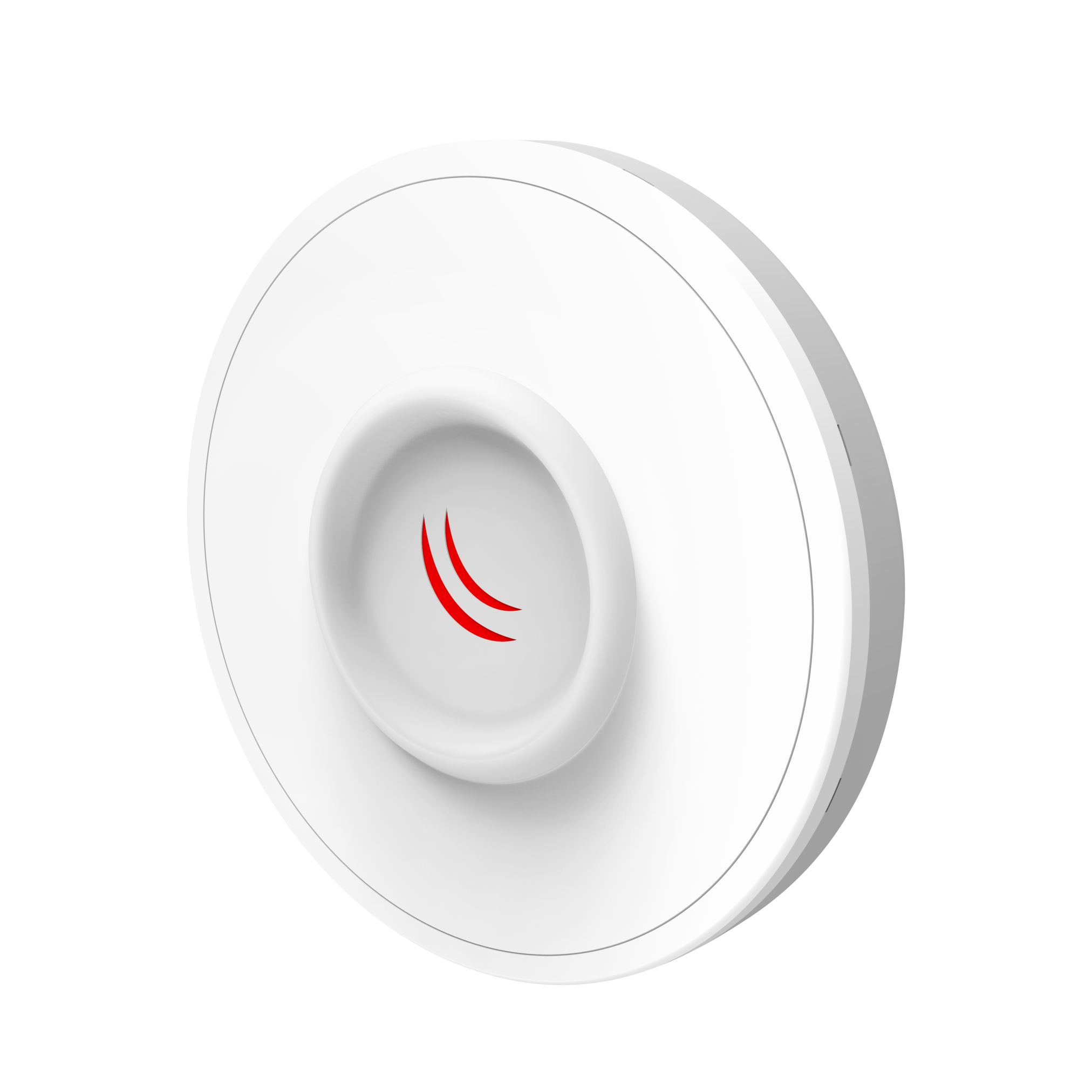

DISC Lite5 ac
The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.
– DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 600 MHz |
| Dimensions | ∅ 265mm, height: 80mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Wireless | |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11ac |
| Antenna gain dBi for 5 GHz | 21 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Wireless specifications | |
| Max. Transmit Power (dBm) | 25 |
| Max. Receive Sensitivity (dBm) | -96 |
