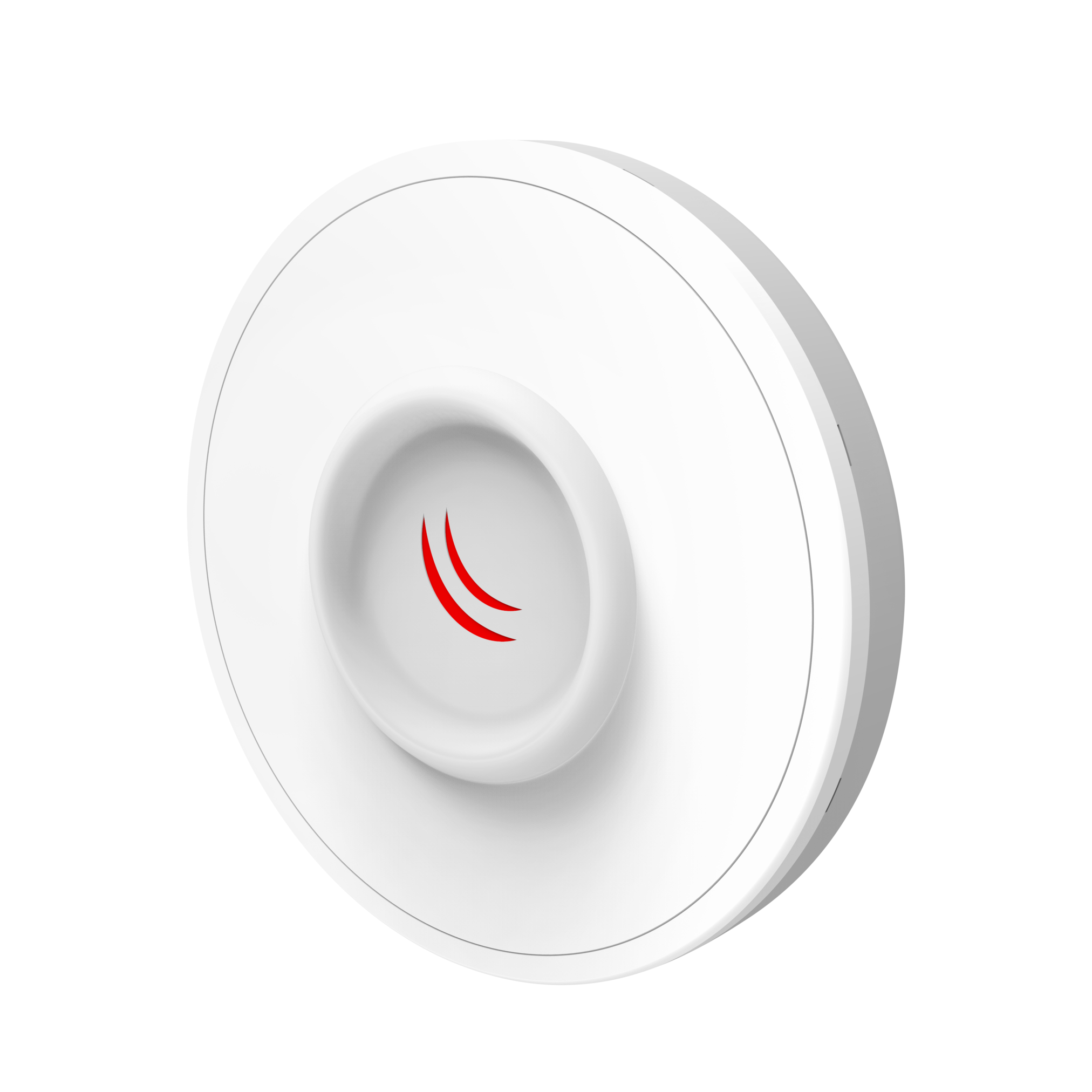

DISC Lite5
DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.
The device comes complete with a power supply, PoE injector and mounting kit for a ultra low cost at $48!
The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.
We have two versions available.
– DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| CPU | AR9344 600 MHz |
| Memory | 64 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| Ethernet | One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X |
| Wireless | AR9344, wireless built-in 5 GHz 802.11a/n, dual chain |
| Frequency range | International: 5150 MHz-5875 MHz USA: 5170-5250 MHz; 5725-5835 MHz |
| Power options | Passive PoE input 11-30 V |
| Consumption | 6 W |
| Antenna gain | 21 dBi |
| Antenna beam width | 12° |
| Dimensions | dia. 265mm, height: 80mm |
| Operating temperature | -40°C .. +70°C tested |
| LEDs | 8x LEDs (6x user LEDs) |
| License level | 3 |
| Operating system | RouterOS |
