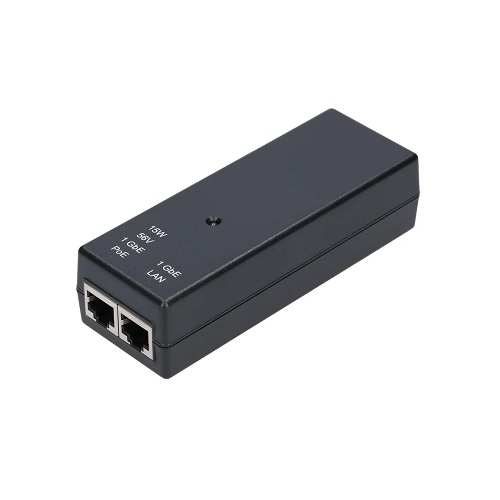

Cambium Networks – Gigabit Poe injector N000000L034B is a high-quality Gigabit PoE injector with one PoE output port for powering devices with voltage level of 56V with a maximum output power of 30W, which is sufficient for the devices such as: e600, e500, 501S, 502S, e510, e700, XV-2-2, XV-2T0, PTP 550, ePMP 3000, ePMP Force 425, ePMP Force 400C. The power supply is conducted on wires 4.5 (+) and 7.8 (-). A 3-pin power cord is NOT included.
Specifications
| Model Number | N000000L034B |
| Output Voltage | 56 VDC (±5 %) |
| Output Power | 30 W |
| Ethernet Support | 5 Gigabit |
| AC Power Input Connection | 3-wire AC inlet; IEC-60320 Type C6 |
| AC Voltage Input | 90 – 300 VAC |
| AC Frequency Range | 47 – 63 Hz |
| Efficiency Level | Energy Level 6 |
| Surge / ESD Protection | ESD: 6 kV/8 kV contact/air; Lightning: 4 kV common, 2 kV differential |
| Hold-up Time | 10 ms at max load |
| Operating Temperature | 0 °C to +50 °C |
| Non-Operating Temperature | −40 °C to +70 °C |
| Operating Humidity | 5 % to 95 % non-condensing |
| Non-Operating Humidity | 0 % to 95 % non-condensing |
| Operating Altitude | Up to 2 000 meters |
| Dimensions (L × W × H) | 140 × 53 × 35 mm |
| Case Color | Black |
| LED Indicator | Blue (DC Out) |
| Compliance / Certifications | UL/cUL, UKCA, RCM, NOM, MEPS, IRAM, PSB, BSMI, KC, KCC, Brazil, CCC, CE/FCC, NRCan, BIS, GEMS, S-MARK, ST, SABS(NRCS), TUV/GS |
