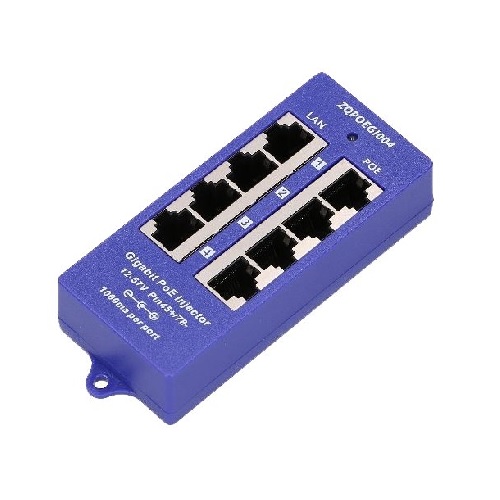

POE-BOX4-G is a passive Gigabit PoE injector suitable for powering up to 4 devices. Connectors marked “LAN” connect Ethernet ports without power supply eg switch, to the opposite side of “POE” connect devices using passive PoE. For powering PoE injector uses two pairs of Ethernet cable: 4,5 (positive pole) and 7,8 (negative pole). The power supply is connected via a standard 2.1/5.5mm power connector. The passive PoE injector can be used in the range of 12 to 57V DC with a max. current of 1000mA / port.
Specifications
| Model | POE-BOX4-G |
| Device Type | PoE Extender / PoE Switch (Unmanaged) |
| Ports (Input) | 1 × RJ45 PoE In (10/100/1000 Mbps) |
| Ports (Output) | 4 × RJ45 PoE Out (10/100/1000 Mbps) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Max Power Input | Up to ~30W (depending on injector/switch) |
| Max Power Output | Shared across 4 ports (typically ~25W total available) |
| Per Port Output | Auto-negotiated (based on connected device) |
| Data Rate | 10/100/1000 Mbps (Gigabit supported) |
| Transmission Distance | Extends Ethernet up to 100m per segment (can cascade for longer distances) |
| Power Supply | Powered via PoE input (no external power required) |
| Installation | Plug-and-play, no configuration needed |
| Indicators | LED indicators for power and network activity |
| Housing | Compact metal or industrial-grade casing (varies by manufacturer) |
| Operating Temperature | Typically -10°C to +50°C |
| Applications | IP cameras, VoIP phones, wireless APs, surveillance systems |
