Περιγραφή

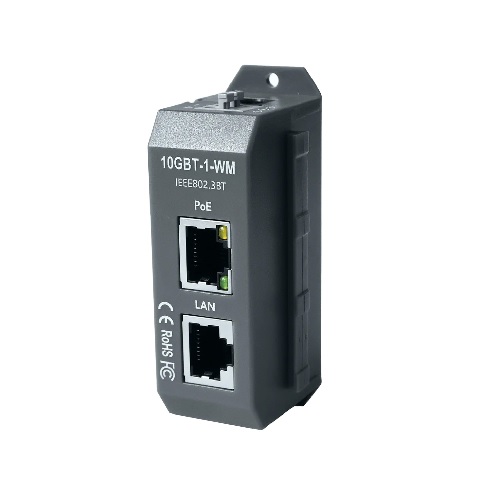

The Maxlink 10GBT-1-WM is a simple active PoE injector supporting the 802.3af/at/bt standards as well as 10G Ethernet (10/100M/1/2.5/10G). It features a pair of shielded Ethernet connectors (1x input, 1x output), and power is delivered over 4 pairs (2 pairs powering is supported). The injector is not equipped with a voltage converter, meaning the output voltage is identical to the input voltage. When using a 56V input, the injector can deliver up to 90W of power. Current limitation per port is max. 1.61 A. Power can be supplied via a standard 5.5 / 2.1mm DC connector or via a terminal block that accepts wires with a cross-section of AWG16-20. Thanks to its clever design, injectors can be combined into compact units and mounted not only on a wall but also on a DIN rail. A DIN rail bracket is included in the package.
Specifications
| Ethernet speed [Mb/s] | 10/100/1000/2500/10000 |
| Gigabit LAN | Yes |
| Pin powering | 1,2,4,5 (+), 3,6,7,8 (-) |
| Output Power / 1 port [W] | 90 |
| PoE-Out standards | 802.3af, 802.3at, 802.3bt |
| PoE Out ports | 1 |
| Output Voltage [V] | 48 .. 57V DC |
| LED indication | Yes |
| Operating temperature [°C] | 0 up to 50 |
| Width [mm] | 30 |
| Depth [mm] | 42 |
| Height [mm] | 88 |
