Περιγραφή

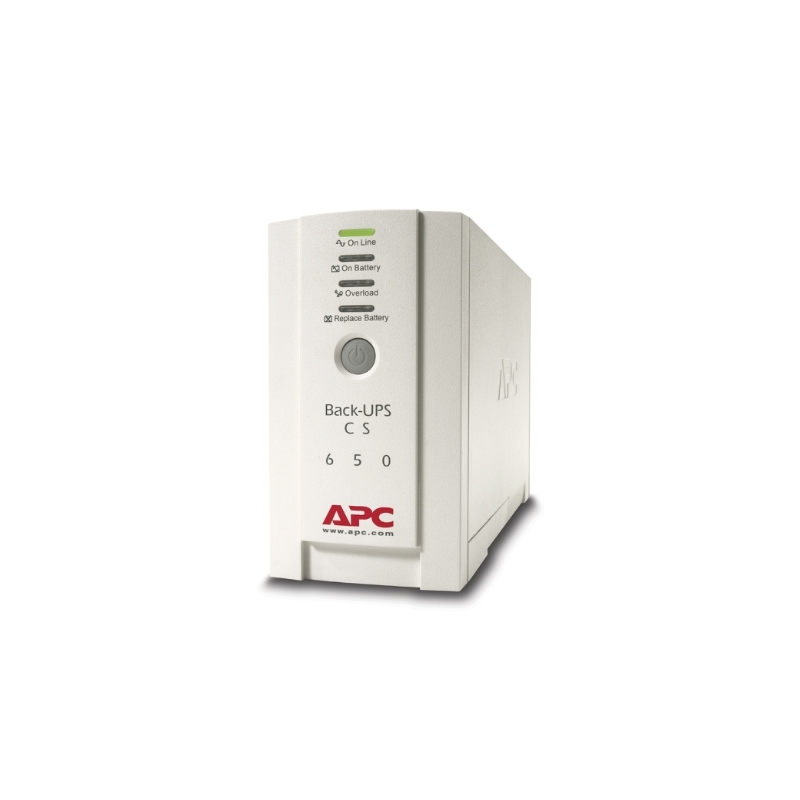

APC Back-UPS CS 650VA, 230V, 4 IEC outlets (3 surge)
Battery Backup & Surge Protector for Electronics and Computers
Includes: (2) Detachable IEC C13 to IEC C14 power cords, CD with software, Documentation CD, USB cable
Technical Specifications:
Output
Max Configurable Power (Watts) 400 Watts / 650VA
Output Frequency (sync to mains) 47 – 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology Standby
Waveform type Stepped approximation to a sinewave
Transfer Time 6 ms typical : 10 ms maximum
Input
Input frequency 47 – 63 Hz, 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 160 – 286 Adjustable, 180 – 266V
Number of Power Cords 2
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 8hour(s)
Nominal Battery Voltage 12 V
Replacement Battery RBC17
Expected Battery Life (years) 4 – 6
RBC Quantity 1
Battery Charge Power (Watts) 12 Watts
Battery Volt-Amp-Hour Capacity 95
Communications & Management
Interface Port(s) Optional Simple Signalling RS232 cable, USB
Control panel LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 310Joules
Data Line Protection RJ45 analog phone line for phone/fax/modem/DSL
Physical
Maximum Height 165MM, 16.5CM
Maximum Width 91MM, 9.1CM
Maximum Depth 284MM, 28.4CM
Net Weight 6.03KG
Shipping weight 7.31KG
Shipping Height 494MM, 49.4CM
Shipping Width 185MM, 18.5CM
Shipping Depth 415MM, 41.5CM
Color Beige
Master Carton Units 1.0
Master Carton Weight 7.3
Units per Pallet 48.0
SCC Codes 10731304219788
Environmental
Operating Temperature 0 – 40 °C
Operating Relative Humidity 5 – 95 %
Operating Elevation 0 – 3048meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 5 – 95 %
Storage Elevation 0 – 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Conformance
Approvals A-Tick, C-Tick, CE, GOST, NEMKO
Standard warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
PEP Available in Documentation tab
EOLI Available in Documentation tab
