Περιγραφή

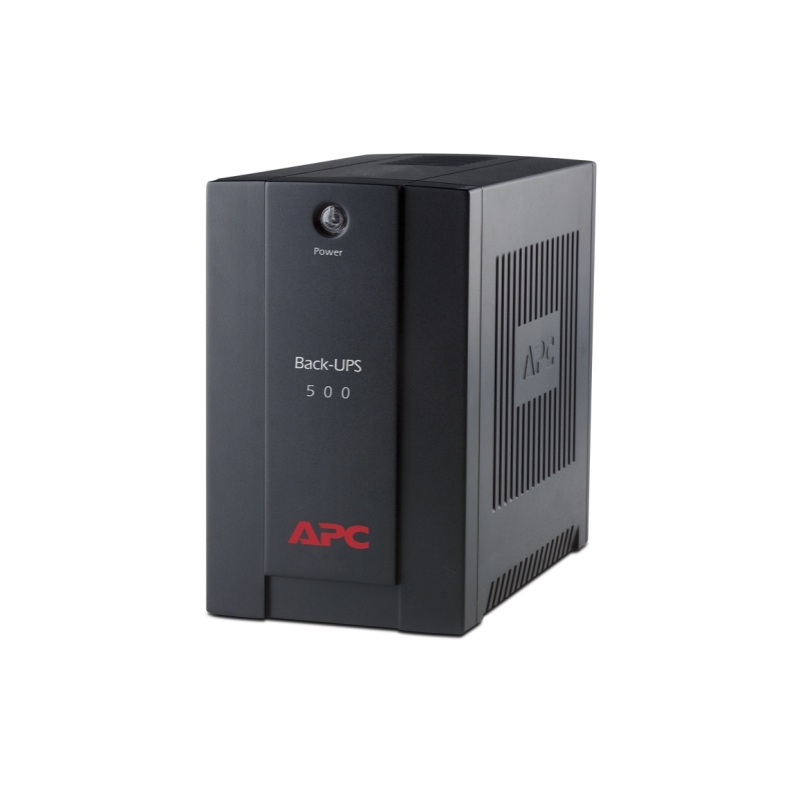

APC Back-UPS 500VA, 230V, AVR, 3 IEC outlets
Battery Backup & Surge Protector for Electronics and Computers
Technical Specifications:
Output
Max Configurable Power (Watts) 300 Watts / 500VA
Output Frequency (sync to mains) 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50 Hz Sync to mains
Topology Line interactive
Waveform type Stepped approximation to a sinewave
Transfer Time 6 ms typical : 10 ms maximum
Input
Input frequency 45 – 65 Hz
Input voltage range for main operations 160 – 280V
Number of Power Cords 1
Batteries & Runtime
Nominal Battery Voltage 12 V
Replacement Battery APCRBC114
Battery Charge Power (Watts) 4.7kWatts
Communications & Management
Control panel LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 273Joules
Physical
Maximum Height 185MM, 18.5CM
Maximum Width 115MM, 11.5CM
Maximum Depth 213MM, 21.3CM
Net Weight 5.2KG
Shipping weight 5.68KG
Shipping Height 257MM, 25.7CM
Shipping Width 190MM, 19.0CM
Shipping Depth 291MM, 29.1CM
Color Black
Master Carton Units 2.0
Units per Pallet 60.0
SCC Codes 60731304307367
Environmental
Operating Temperature 0 – 40 °C
Operating Relative Humidity 0 – 95 %
Operating Elevation 0 – 3048meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 %
Storage Elevation 0 – 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Conformance
Approvals CE
Standard warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
PEP Available in Documentation tab
EOLI Available in Documentation tab
