RBGESP

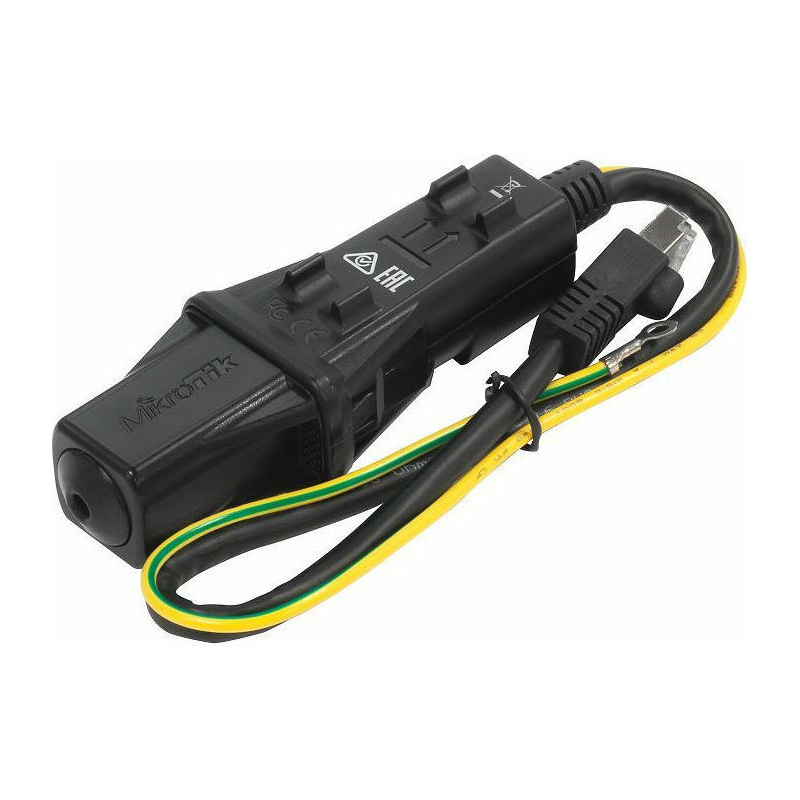

RBGESP is Gigabit Ethernet Surge Protector that can be used to protect the network from lighting or surge damages. Comes with the outdoor case and special grounding cable. Maximum suggested cable lenght is 40 meters.
Original RouterBoard Gigabit Ethernet Surge Protector
To protect your device from power surges, attach RBGESP to desired connection cable and device. Attach grounding wire to appropriate location. If multiple devices are used, it is recomended to use RBGESP on each end of the connection cable between devices for a better protection.
Technical Specifications:
| Interface connections | RJ45 Male/Female Conector |
| ESD/EMP protection | Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μs ESD, IEC 61000-4-2, ±30 kV contact, ±30 kV air |
| DC spark-over voltage | 90 V @ 100 V/s |
| Maximum impulse spark-over voltage | 700 V @ 1 kV/μs |
| Discgarge current | 5 kA (8/20μs) |
| Minimum insulation resistance | 1Gohm @ 50V |
| Maximum capacitance | 4 pF @ 1 MHz |
| Data line protecion | RJ45 10/100/1000 Ethernet |
| Maximum suggested cable lenght | 40 m |
| PoE support | Yes, IEEE 802af/at |
| Operating temperature | -40 to 70°C |
