RouterBoard RBWAPR-2NDR11E-LTE

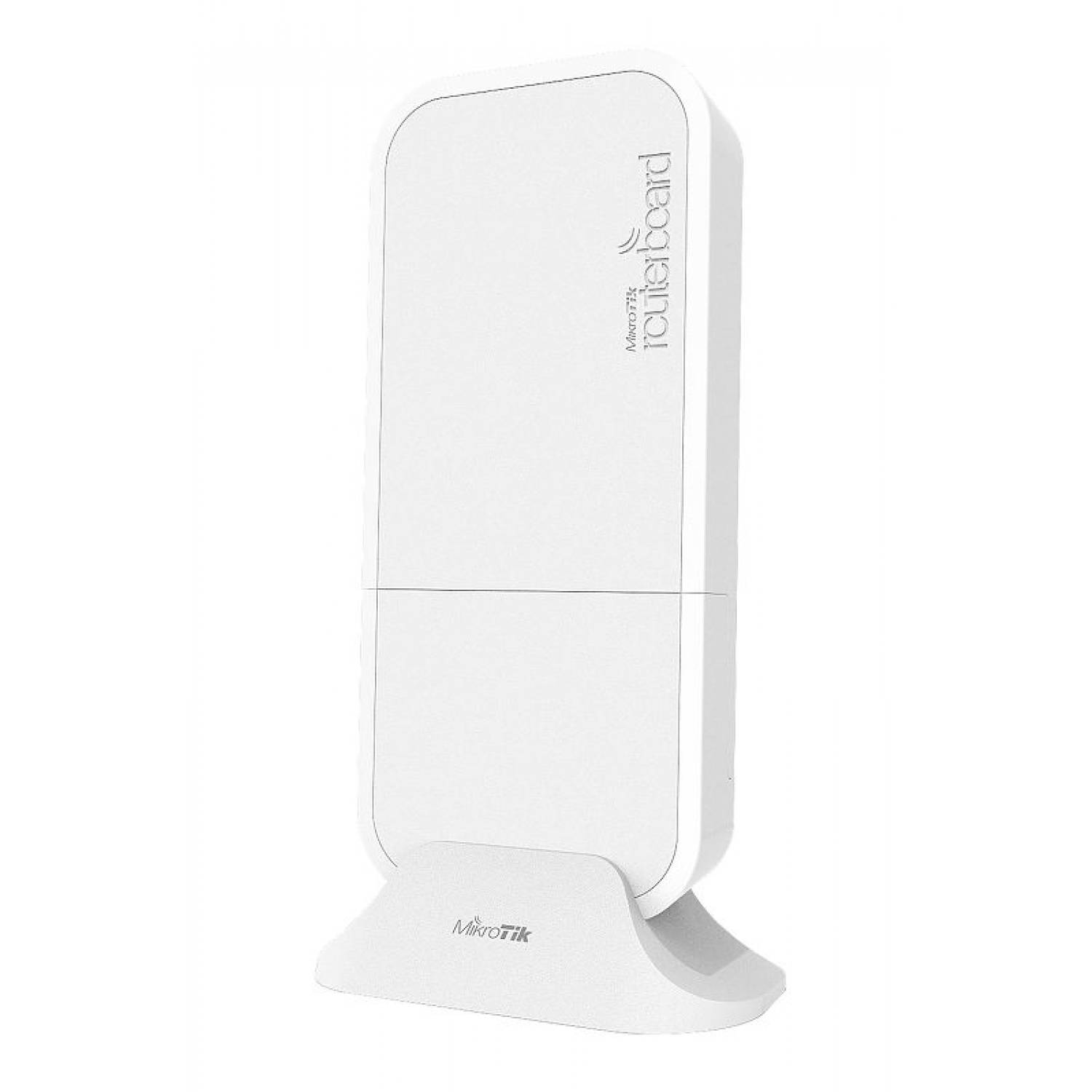

The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options – 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
Technical Specifications:
| CPU | 650 MHz, QCA9531, 1 core |
| RAM | 64 MB |
| Ethernet port | 1x 10/100mbps |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless antenna gain | 2 dBi |
| LTE antenna gain | 2-4.5 dBi (with uFL connector) |
| Antenna beam width | 360° |
| LTE modem | 4G – (150Mbps Downlink, 50Mbps Uplink) 3G – R7 (21Mbps Downlinks, 5.76MbpsUplink) 2G – Class12 |
| SIM slot | 1 |
| Powering | Passive PoE 9-30V, |
| Dimensions | 185 x 85 x 30 mm |
| Operating temperature | -40°C .. +60°C tested |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 8 W |
