Περιγραφή

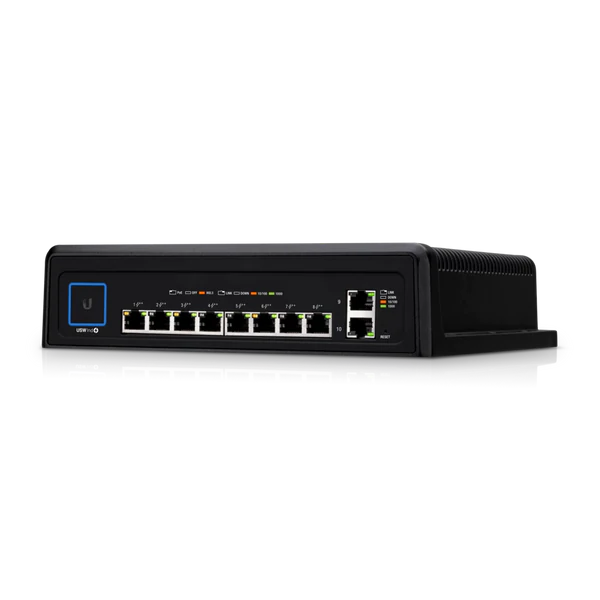

USW-Industrial
10-Port Durable Switch with High-Power 802.3bt PoE++Auto-Sensing IEEE 802.3af/at/bt PoE Fanless Industrial-Grade DesignPlenum-Rated Form Factor The USW-Industrial is a managed Gigabit Layer 2 switch with auto-sensing, high-power 802.3bt PoE++ support. It has 10 RJ45 ports total, 8 of which offer PoE++ (up to 60W per port), ideal for powering devices like UniFi LED Panels, cameras, and APs. Featuring a ruggedized industrial design, the fanless USW-Industrial is plenum-rated* and can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature variations.
- Plenum rated cabling is required for use in plenum spaces.
Technical Specifications:
| USW-Industrial | |
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36″) |
| Weight | 3.85 kg (8.49 lb) |
| Enclosure Characteristics | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Networking Interfaces | (8) 10/100/1000 802.3bt PoE RJ45 Ports (2) 10/100/1000 RJ45 Ports |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100 – 240 VAC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 450W DC |
| Supported Voltage Range | AC Input: 100 to 240VAC, Max. 6AMax. |
| Power Consumption (Excluding PoE Output) |
20W |
| LEDs System PortsStatusPoE |
RJ45, Speed/Link/Activity |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature Internal AC/DC@450W Internal AC/DC@240W |
-40 to 50° C (-40 to 122° F) -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC |
| POE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE Wattage per Port by PSE | 802.3bt 60W |
| Voltage Range 802.3 PoE Mode | 50-57V |
| Max. Total PoE Power Budget | 430W |
