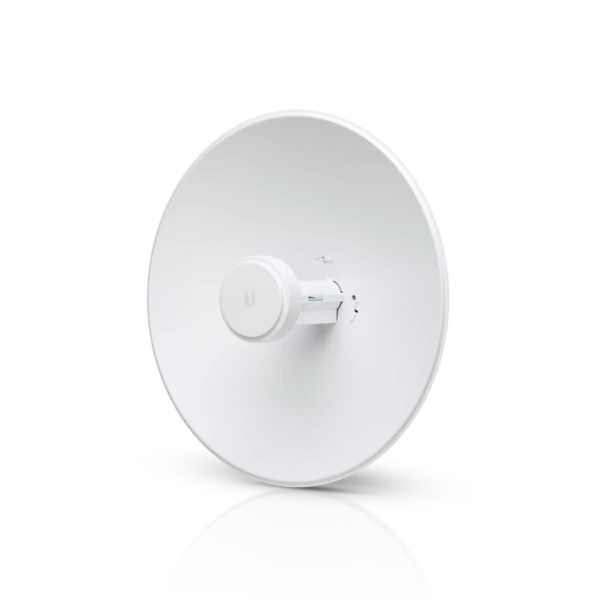

UBIQUITI PowerBeam M2-400 18dBi 2GHz MIMO, High-Performance airMAX Bridge
High-Performance airMAX® Bridge Incorporating a dish reflector design with advanced technology, the PowerBeam® is the latest generation of Ubiquiti airMAX® CPE for customer locations.
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam.
Improved Noise Immunity The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design The NanoBeam models are available in two form factors:
- All-in-One Design The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.
- Dish Reflector Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy
Technical Specifications:
| PBE-M2-400 | |
|---|---|
| Dimensions | 420 x 420 x 289 mm (16.54 x 16.54 x 11.38″) |
| Weight | 1.795 kg (3.96 lb) |
| Power Supply | 24V, 0.5A PoE |
| Max. Power Consumption | 6W |
| Operating Frequency | 2405-2475 MHz |
| Gain | 18 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 278.4 N @ 120 km/h (63 lbf @ 75 mph) |
| Wind Survivability | 120 km/h (75 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
