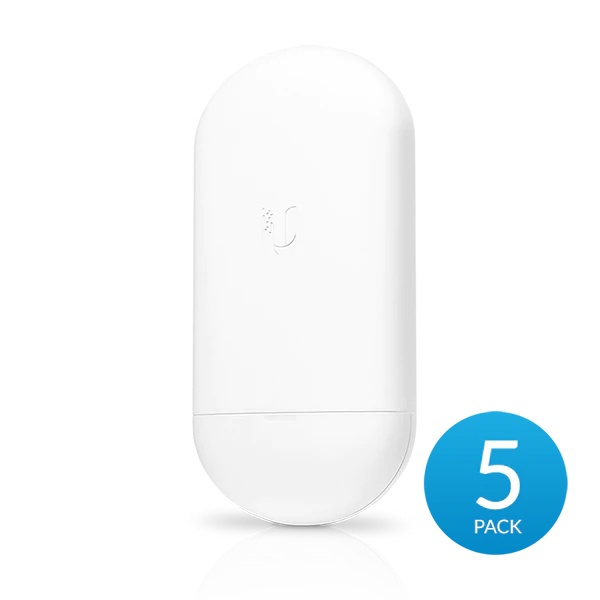

Nanostation 5ac Loco 5-pack
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
The NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco get maximum gain out of the smallest footprint.
The low cost, high performance, and small form factor of the NanoStation AC loco make them extremely versatile and economical to deploy.
The NanoStation AC loco feature airMAX technology and a dedicated Wi-Fi radio for management.
Features:
- New antenna
- Improved design
- Management WiFi Radio/UNMS mobile app
- AirOS 8
Technical Specifications:
| Loco5AC | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33″) |
| Weight | 0.18 kg (6.35 oz) |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Gain | 13 dBi |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| LEDs | (1) Power |
| Mounting | Pole-Mount (Kit Included) |
| RoHS Compliance | Yes |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Power Method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.3A Gigabit PoE Supply* |
| Max. Power Consumption | 7W |
| ESD/EMP Protection | ±24kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 – 5875 |
| USA | U-NII-1:5150 – 5250 U-NII-2A:5250 – 5350 MHz U-NII-2C:5470 – 5725 MHz U-NII-3:5725 – 5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| USA | 2412 – 2462 |
