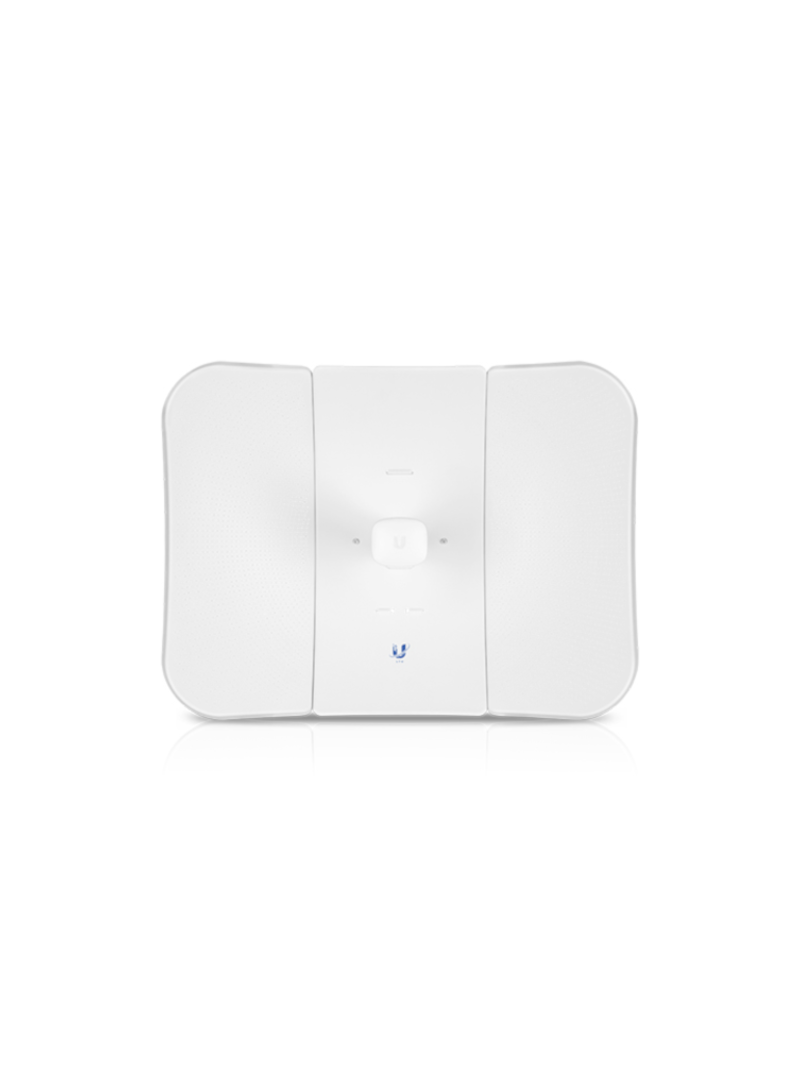

The Ubiquiti LTU XR client device enables the creation of long-distance wireless links with the LTU Rocket, which serves as a base station.
The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio, so it’s easy to set up and configure with the UISP® Mobile app.
Features:
- Proprietary Ubiquiti LTU core processor
- Long-range, 29 dBi antenna with InnerFeed® technology
- High data and performance rate (1024 QAM)
- Link range up to 35 km
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Central configuration management from the AP side
- Frequency splitting
- Router mode support
- Integrated GPS
- Link planning support via ISP Design Center
- Quick, Bluetooth-powered setup with the UISP Mobile app
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66″) |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |
| Mount | Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36″) |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8- ) |
| Power supply | 24V DC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22-26V DC |
| Max. power consumption | 8.5W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Modes | PtMP CPE only |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView® , speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Router mode |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
