Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range

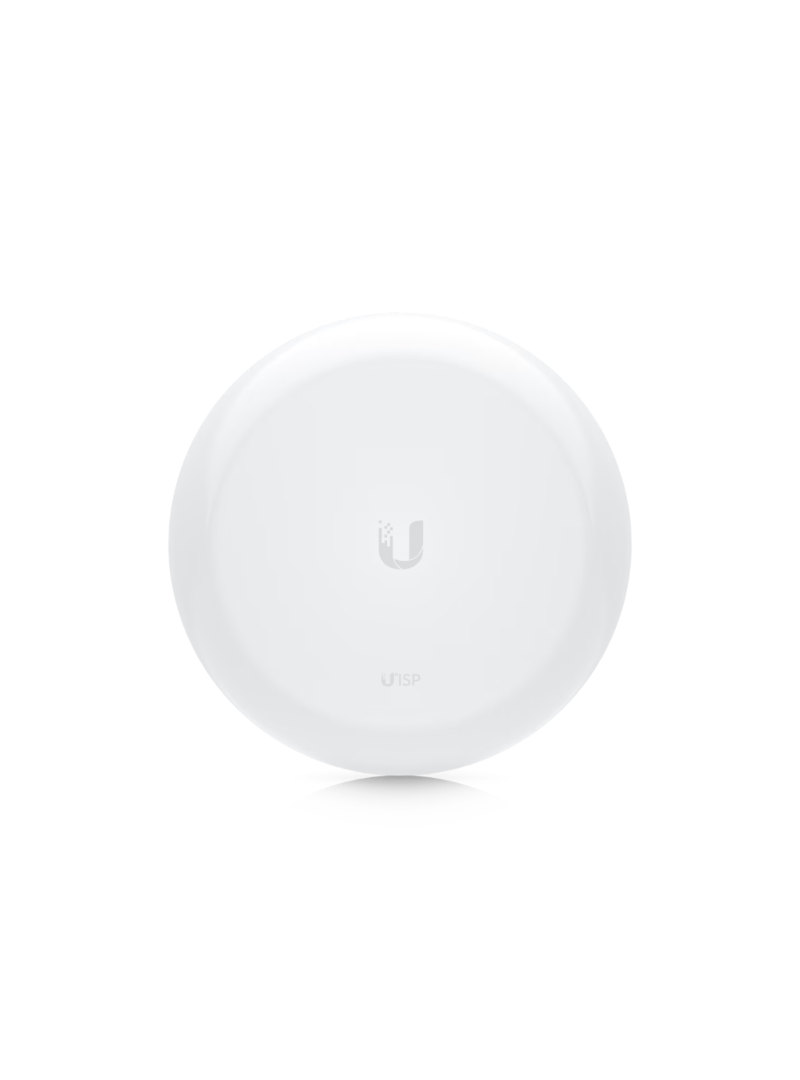

The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.
UISP application support
Bluetooth-powered setup via the UISP Mobile app is available. Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients’ plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app. Managed with the UISP application: Version 1.4.0-beta.11 and later.
Technical Specifications :
| Mechanical | |
|---|---|
| Dimensions | Ø189 x 89 mm (Ø7.4 x 3.5″) |
| Weight | Without mount: 1.8 kg (3.9 lb) With mount: 2.95 kg (6.5 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized plastic |
| Mount material | Stainless steel (SUS304) |
| Mount | 60G precision alignment pole mount (included) |
| Wind loading | 64 N at 200 km/h (14.39 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex® A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8- ) or 2-Pairs (4, 5+; 7, 8- ) |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 29.31W |
| RF connections | Internal |
| GPS | Yes |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| System | |
| Maximum throughput 60 GHz |
3.8 Gbps/ 6 Gbps (with channel bonding enabled) |
| Maximum range | 2 km |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 50/50 |
| Software | |
| OS | airOS® |
| Modes | PtP Only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Utilities | Beamform info, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Wireless settings | GPS sync |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern WEB browser/iOS or Android based smartphone |
| RF | |
| Operating frequency* | 57 to 66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bonding enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *It depends on the channel bandwidth |
| Beamwidth | HPOL: NaN (the antenna is only vertically polarized) VPOL: 3° Elevation: 3° |
| Electrical downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
