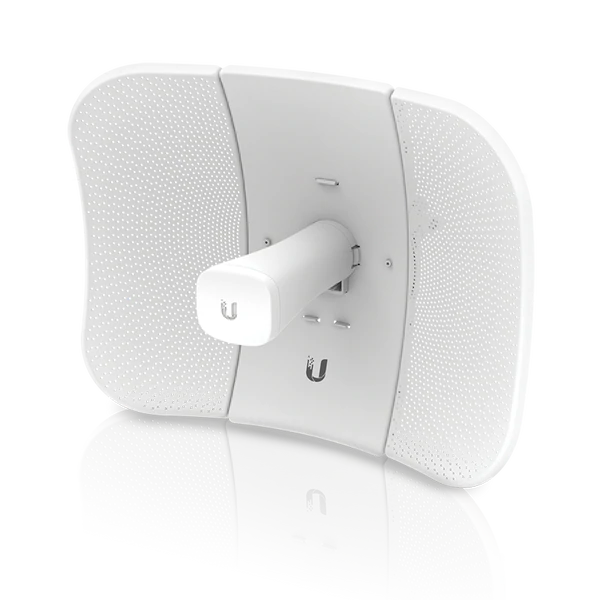

Ubiquiti LiteBeam AC GEN2
Ubiquiti Networks launches the second generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.
The second generation devices work under airOS® v8 software – the revolutionary operating system for Ubiquiti® airMAX ac products.
Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup.
This airMAX ac CPE features adjustment flexibility in three axes for versatile mounting options.
Features:
- Improved Radio Design
- Improved Mounting
- Improved Surge Protection
- Management WiFi Radio/UNMS mobile app
- AirOS 8
Technical Specification:
| LiteBeam | |
|---|---|
| Dimensions | 358 x 271.95 x 272.50 mm (14.09 x 10.71 x 10.73″) |
| Weight | Without Mount: 800 g (1.76 lb), With Mount 980 g (2.16 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Gain | 23 dBi |
| Max. Power Output | 25 dBm |
| Max. Power Consumption | 7W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Enclosure Characteristics | Reflector (SGCC 0.6T) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 5250-5350 5240-5725 5725-5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| US/CA | 2412 – 2462 |
