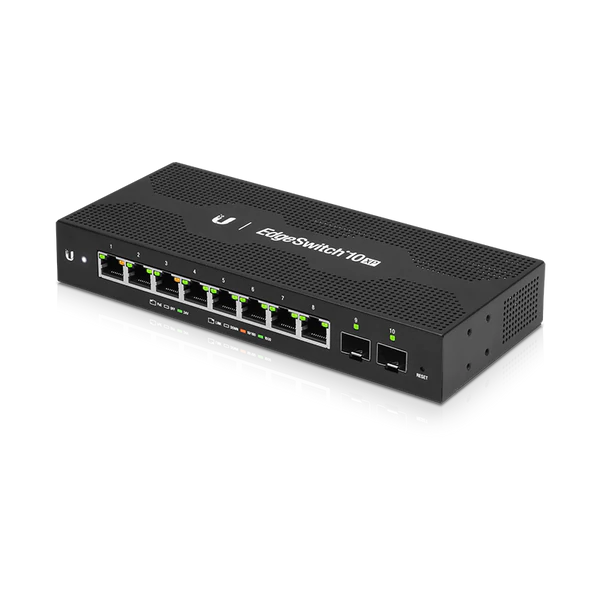

EdgeSwitch 10XP
Compact WISP switch sporting (8) Gigabit RJ45 ports, each equipped with a 24V passive PoE output, and (2) SFP ports.
Optimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through UISP.
Features:
- (8) 10/100/1000 Mbps ethernet ports and (2) SFP ports
- Supports 24V passive PoE output on all RJ45 ports
- Powered by external AC/DC adapter
- DC jack supports battery backup with EdgePower™ (sold separately)
- Desk, wall, and rackmount options
Technical Specifications:
| EdgeSwitch 10XP | |
|---|---|
| Dimensions | 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54″) |
| Weight | 500 g (1.10 lb) |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Max. Power Consumption (Excluding PoE Output) | 8W |
| Power Method | 24VDC, 2.5A |
| Supported Voltage Range | 9 – 30VDC, 5A |
| Power Supply | 24VDC, 2.5A Power Adapter (Included) |
| LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE, Link/Speed/Activity Link/Activity |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Certifications | CE, FCC, IC |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE | |
| PoE Interface | (8) 24VDC Passive PoE (Pins 4, 5+; 7, 😎 |
| Max. Passive PoE Wattage per Port | 15W |
| 24V Passive PoE Voltage Range | 24V |
