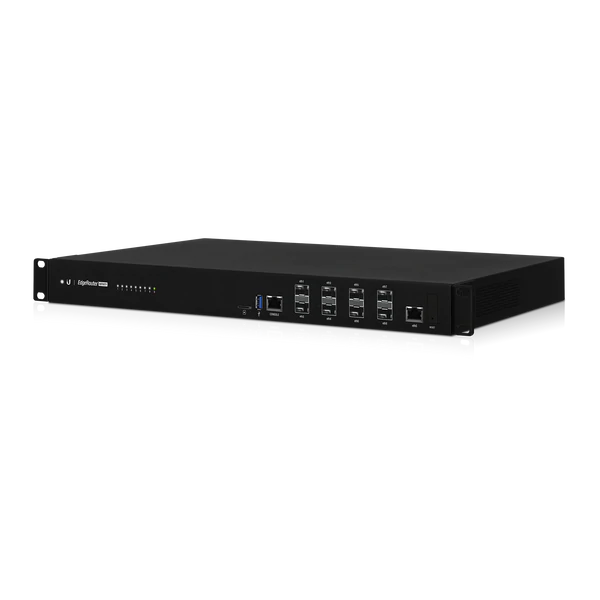

Ubiquiti ER-8-XG
Compact, rack-mountable router with Gigabit Ethernet and fiber uplink capability and an 80 Gbps aggregate throughput.
The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rack-mountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or UISP.
Features:
- (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port
- Hot-Swappable Modular Power Supplies
- 16-Core, 1.8 GHz Processor
- Rack-mountable
Technical Specifications:
| ER-8-XG | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72″) |
| Weight Without Mount With Mount |
4.950 kg (10.91 lb) 5.045 kg (11.12 lb) |
| Max. Power Consumption | 100W |
| Power Method | 110 – 240VAC |
| Power Supply | (2) Hotswappable AC/DC PSU |
| Supported Voltage Range | AC Input: 100 to 240VAC |
| Button | Reset |
| Processor | MIPS64 16 Core 1.8 GHz |
| System Memory | 16 GB DDR4 RAM |
| On-Board Flash Storage | 8 MB NOR Flash 4 GB eMMC NAND Flash |
| LEDs System SFP+ Data Ports RJ45 Data Port |
Status Link/Activity Link/Activity |
| Serial Console Port Interfaces | (1) RJ45 Serial Port |
| Data Ports Interfaces | (8) SFP+ Ports (1) RJ45 Gigabit Ethernet Port |
| Mounting | Rack |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
