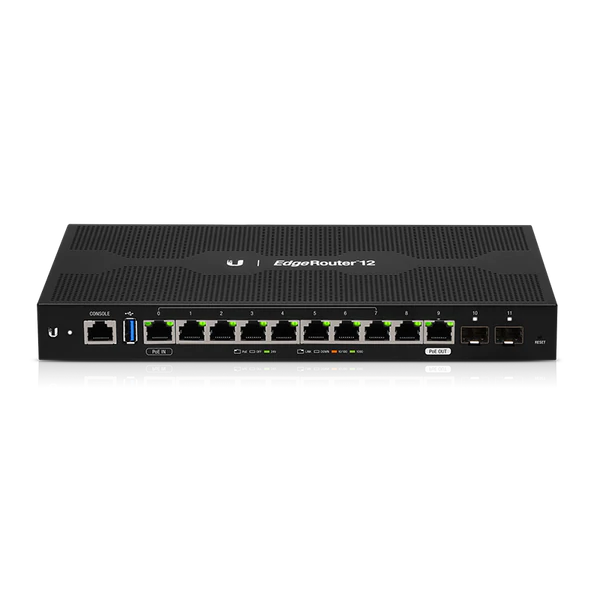

Ubiquiti EdgeRouter 12
High-performance router with a built-in Layer 2 switch, (10) Gigabit RJ45 ports, and (2) SFP ports.
The EdgeRouter 12 is a high-performance Gigabit Router with PoE flexibility. With increased performance over the previous generation of routers, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12 supports Layer-2 switching and scalable configuration using EdgeOS or UISP.
Features:
- 10x Gigabit RJ45 routing ports
- 24V PoE input on port 0
- 24V PoE passthrough option on port 9
- Ports 0-7 can be configured for line-rate Layer 2 switching
- 2x Gigabit SFP ports
- 3.4 million packets per second for 64-byte packets
- 6.8 Gbps for packets 1518 bytes or larger in size
- Silent, fanless operation
- Compact, durable metal case
Technical Specification:
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22″) |
| Weight | 700 g (1.54 lb) |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| Power | 24V (20 – 30V) Passive PoE, External AC Power Adapter (24V, 1A) included |
| Interfaces | 1x RJ45 Serial Port 10x Ethernet Ports (Default Port 0) 10x 10/100/1000 RJ45 Ports 2x 1 Gbps SFP Ports |
| Layer 3 Forwarding Performance | Packet Size 64 Bytes – 3,400,000 pps Packet Size 1518 Bytes or Larger – 6.8 Gbps (Line Rate) |
| Processor | 4-Core 1 GHz, MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| Mounting | Rack (With use of Rack Mount Kit, model ER-RMKIT) |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| PoE Interfaces | PoE In – 1x 24V Passive PoE Port, 2-pair (4, 5+; 7, 😎 PoE Out – 1x 24V Passive PoE Port, 2-pair (4, 5+; 7, 😎 |
| Passive PoE Max. Wattage Per Port | 20W (24V, 0.83A) |
| Passive PoE Output | DC/PoE Passthrough |
