EdgePower 54V 150W DC (EP-54V-150W-DC)

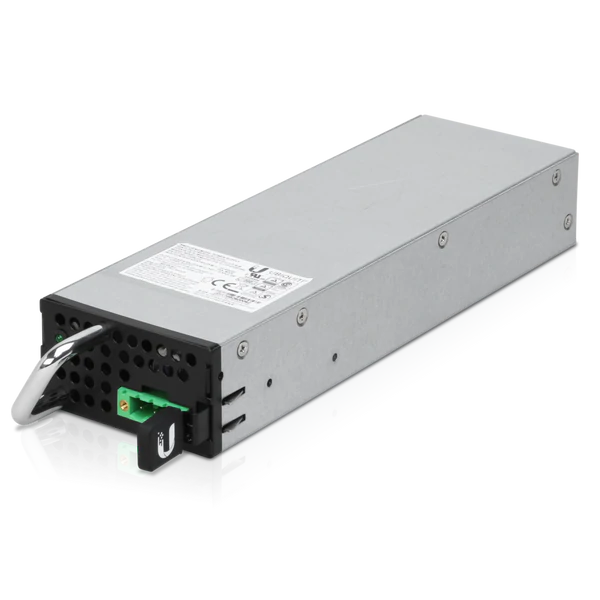

The EP-54V-150W-DC is a DC to DC PSU module designed for use with the EdgePower EP-54V-150W.
It can be used as a primary or auxiliary DC PSU to deliver 150W of power output, or used as a backup to the primary PSU.
Features:
- Modular DC to DC Power Supply Unit
- 54V, 150W Maximum Power Output
- Compatible with EdgePower EP-54V-150W
- 150W Primary or Backup DC PSU, or
- Increase Total Power Output up to 300W
- Smart charging and discharging protection for 2/3/4 series lead acid battery
Technical Specifications:
| EP-54V-150W-DC | |
|---|---|
| Power Method | DC/DC 150W for 22 – 60V Input, DC Terminal Block for 54V Output |
| Power Supply | DC/DC 150W for 22 – 60V Input |
| Voltage Range | DC/DC for 22 – 60V Input, 54V Output |
| Battery Type | 2/3/4 Series Lead Acid Battery |
| Maximum Charging Voltage 2 Series 3 Series 4 Series |
26.8 – 27.5V 40.2 – 41.2V 53.6 – 55V |
| Discharge Protection Voltage 2 Series 3 Series 4 Series |
21.5V 32V 43V |
| Charging Current 2 Series 3 Series 4 Series |
0.3A 0.3A 0.2A |
| LED | System On/Off |
| ESD/EMP Protection | Air ± 8kV; Contact ± 6kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
