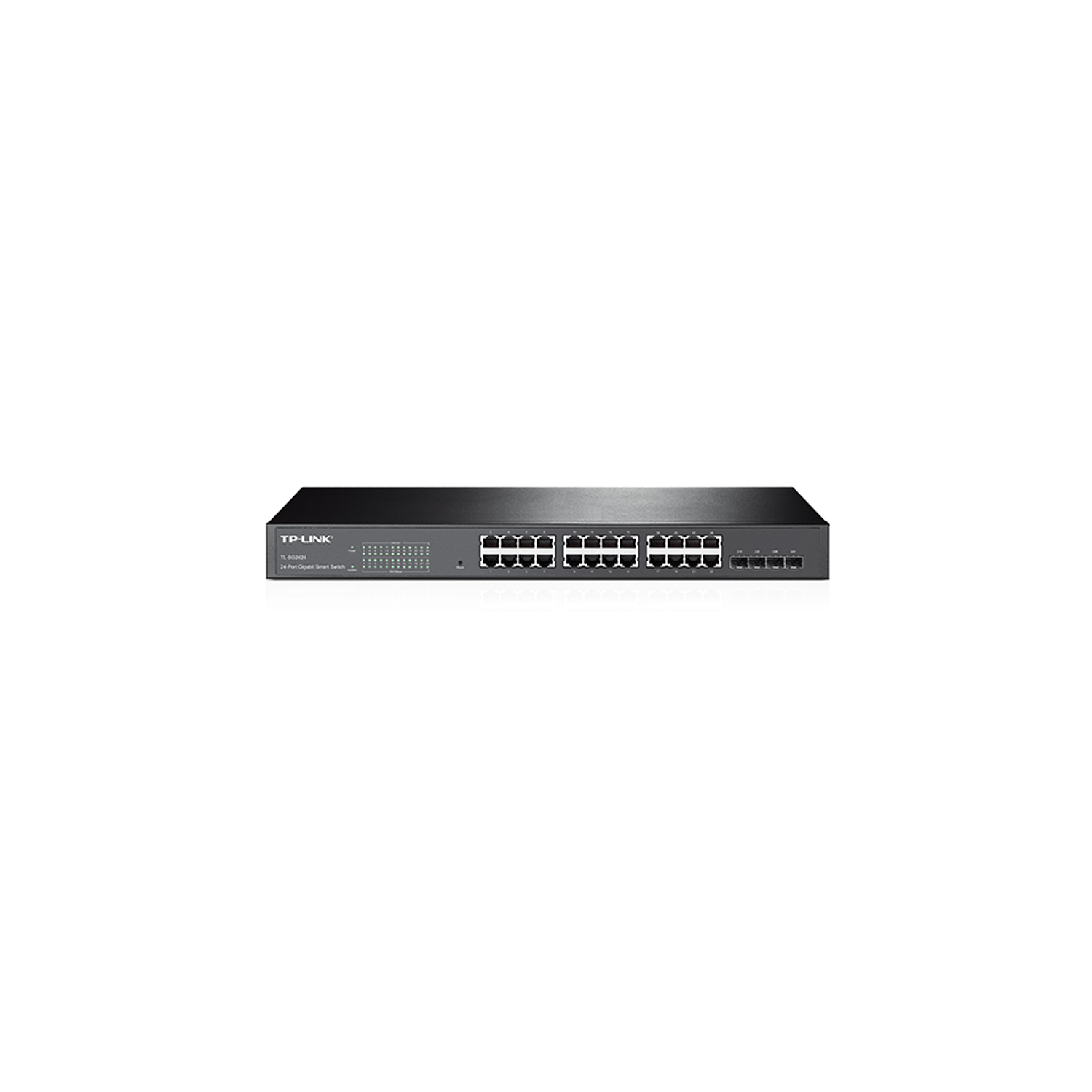

TP-Link TL-SG2424 V3 24 Port Web Managed Gigabit Switch

TP-Link TL-SG2424 V3 24 Port Web Managed Gigabit Switch

138,94 €

What This Product Does



Κωδικός προϊόντος: TL-SG2424 Κατηγορία:

Περιγραφή

What This Product Does



TP-LINK Gigabit Smart Switch TL-SG2424 is equipped with 24 gigabit RJ45 ports and 4 combo SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK Gigabit Smart Switch TL-SG2424 is a cost-eff­ective product solution for the small and medium business. TL-SG2424 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart Switch TL-SG2424 provides you the ideal access-edge solution.

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.

Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2424 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

TL-SG2424 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.



Features



Layer 2 Features

    t

  • LAG,Static LAG

    • t

  • Up to 512 VLANs simultaneously(out of 4K VLAN IDs)

    • t

  • STP/RSTP/MSTP

    • t

  • IGMP Snooping

Quality of Service

    t

  • 4 priority queues

    • t

  • Support IEEE 802.1P Priority

    • t

  • DSCP QoS

    • t

  • Rate limit feature

Security Strategies

    t

  • Port Security

    • t

  • Storm Control

Management

    t

  • Web-based GUI

    • t

  • Command Line Interface

    • t

  • SNMP v1/v2c/v3

    • t

  • RMON (1,2,3,9 group)



Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo 100/1000Mbps SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF
Dimensions (W X D X H) 17.3*7.1*1.7 in. (440*180*44 mm)
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Performance
Bandwidth/Backplane 48Gbps
MAC Address Table 8k
Packet Forwarding Rate 35.7Mpps
Jumbo Frame 10240 Bytes
Software Features
Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow-based Rate Limiting
L2 Features IGMP Snooping V1/V2/V3 LAG(Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Security Port Security Broadcast/Multicast/Unknown-unicast Storm Control
Management Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: Web System Diagnose: VCT SYSLOG & Public MIBS
Others
Certification CE, FCC, RoHS
Package Contents TL-SG2424 Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
